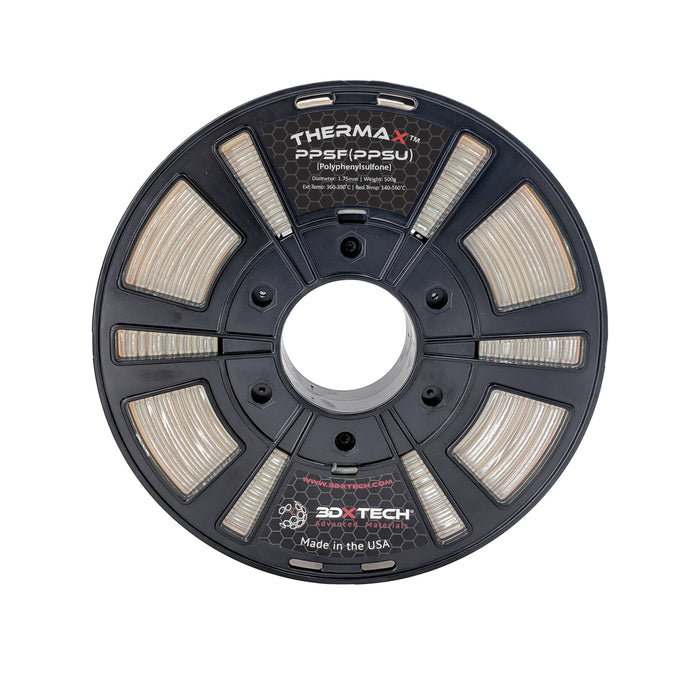

ThermaX™ PPSF (PPSU) 3D Printing Filament

Polyphenylsulfone (PPSF or PPSU) is a high-temperature aromatic sulfone polymer.  Long considered to be one of the highest performance polymers in the plastics world.  PPSF has excellent thermal and chemical resistance, making it well suited for demanding applications in automotive, aerospace, electronics, defense, industrial, medical, semi-con applications.

ThermaX™ is 3DXTECH's brand of high-temperature polymers designed specifically for 3D printing the highest performance parts possible.  PPSU is sold using names such as Solvay's Radel R and BASF's Ultrason P.

3DXTech filaments properties comparison table >> click here <<

PRICE SAVING in bulk - We can do bulk packs in 5 or 10, please email us for a quote

Attributes of Polyphenylsulfone PPSF (PPSU) include:

• Very high thermal properties with a Tg of 220°C and HDT of 205°C
• Excellent hydrolytic resistance
• High Environmental Stress Crack Resistance (ESCR)
• Outstanding impact resistance
• Highly resistant to gamma radiation - even in large doses (10 Mrd)
• Sterilization capable - including EtO gas, radiation, steam autoclaving, plasma, dry heat and cold sterilization.
• Resists most common automotive fluids, including gasoline, antifreeze, transmission fluid, motor oil, power steering fluid, windshield washer fluid (ESCR, 24hrs, 100°C)
• Inherently flame retardant with low smoke evolution and low smoke toxicity
• Excellent dimensional stability (low creep sensitivity and low, uniform coefficient of thermal expansion) and highly reproducible part-to-part dimensions
• Exceptional strength and modulus, even at elevated temperatures

Filament Specifications:

• Diameter:  1.75mm (+/- 0.05mm)
• Density:  1.29g/cm3
• Colour: Black only

Recommended Print Conditions: (starting points)

• Extruder Temp: 360 - 390°C (all-metal extruder)
• Bed Temp: 140-160°C
• Bed Prep: Ultem® Tape, Polyimide Tape, Lightly sanded FR4 or Perf board.
• Other:  No cooling fan, Print speeds of 1000mm/min (starting point).  We recommend printing within a heated enclosure or in a warm build environment.
• Drying Instructions:  Please see the following instructions for when you want to dry out this filament.
