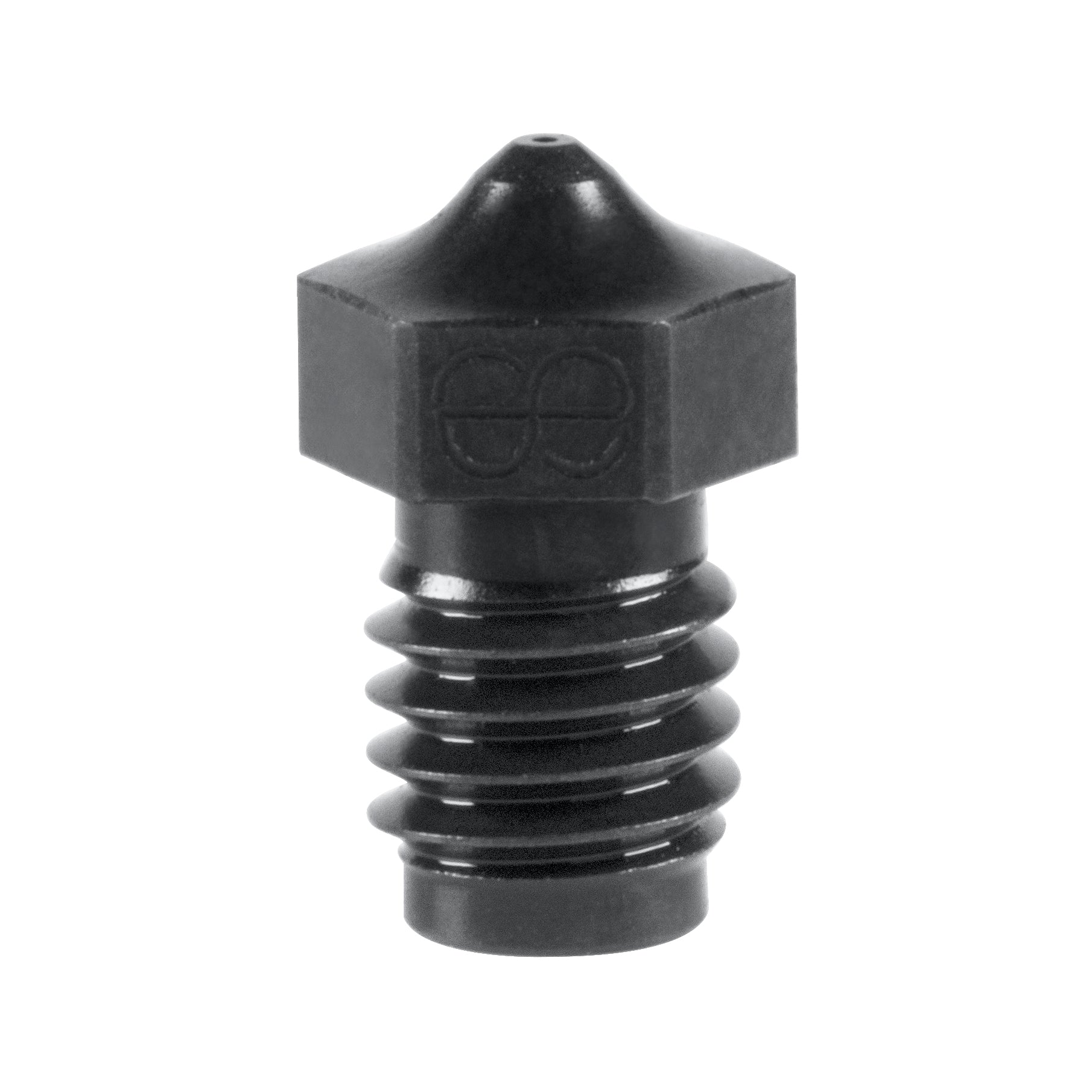

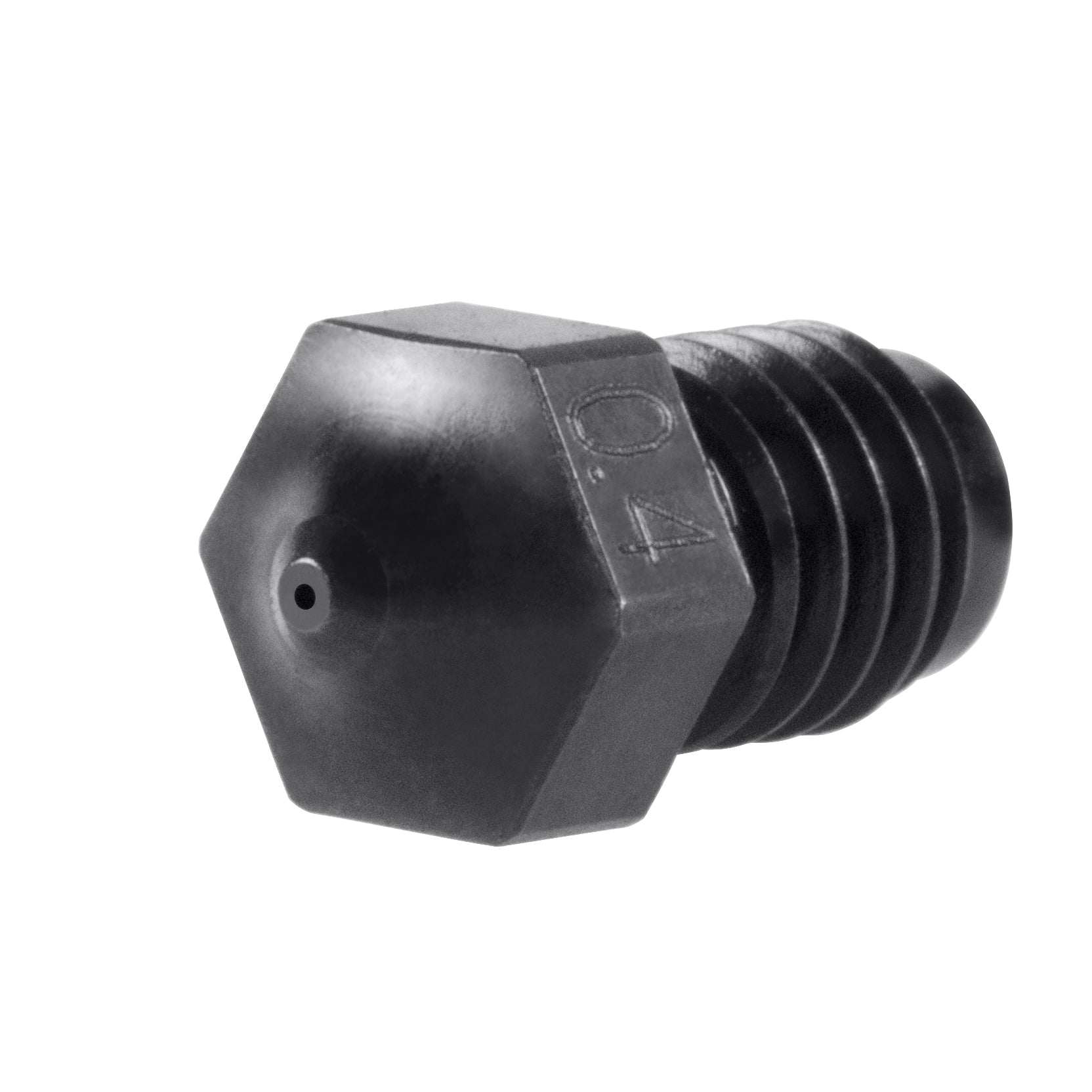

Phaetus PS (V6) Hardened Steel Nozzle
Phaetus PS (V6) Hardened Steel Nozzle
Available in stock (4)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Applicable Filament
Wear-resistance, High temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional materials.
Performance Analysis
Hardness over HRC60 makes an minimum wear at the hole size after a long time printing with abrasive materials.
Temperature resistance up to 450β, easily handling with special engineering plastics such as PEEK.Special processing technology and post-treatment make the nozzle without burr at the edge of tip and without debris in the hole.
Inner hole roughness lower than Ra0.4; Higher smoothness and less adhesion.Min. orifice diameter 0.1mm/Β±0.01mm in experimental level application, making sure high accuracy printing.
High quality imported die steel material ensures the stability of performance.
Β
Product Features
-
-
7.8
Hardness (Mohs)
-
-
-
450β
Maximum Printing Temperature
-
22W/mΒ·k
Thermal Conductivity
-
8ΞΌm/mΒ·β
Expansion Coefficient
-
