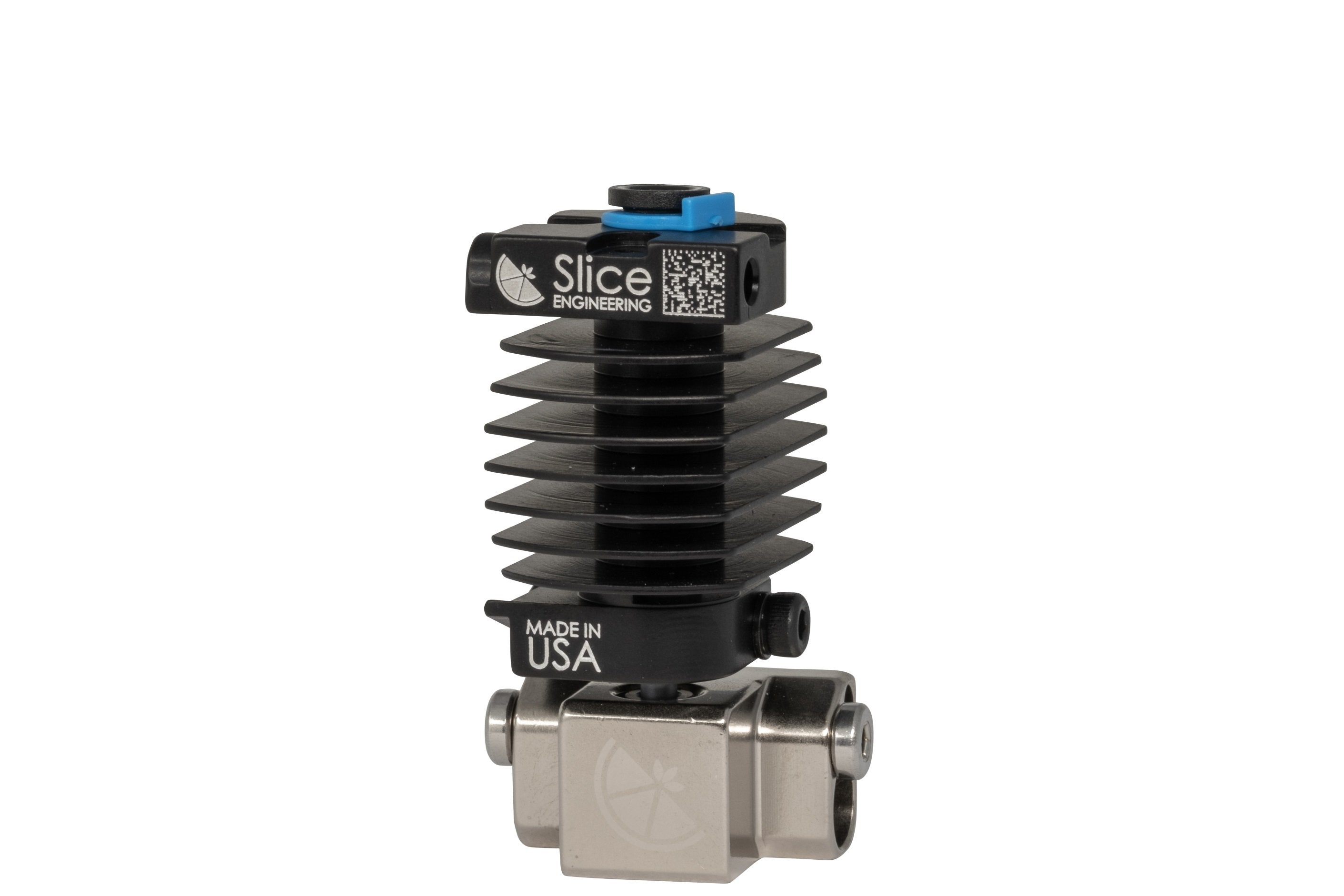

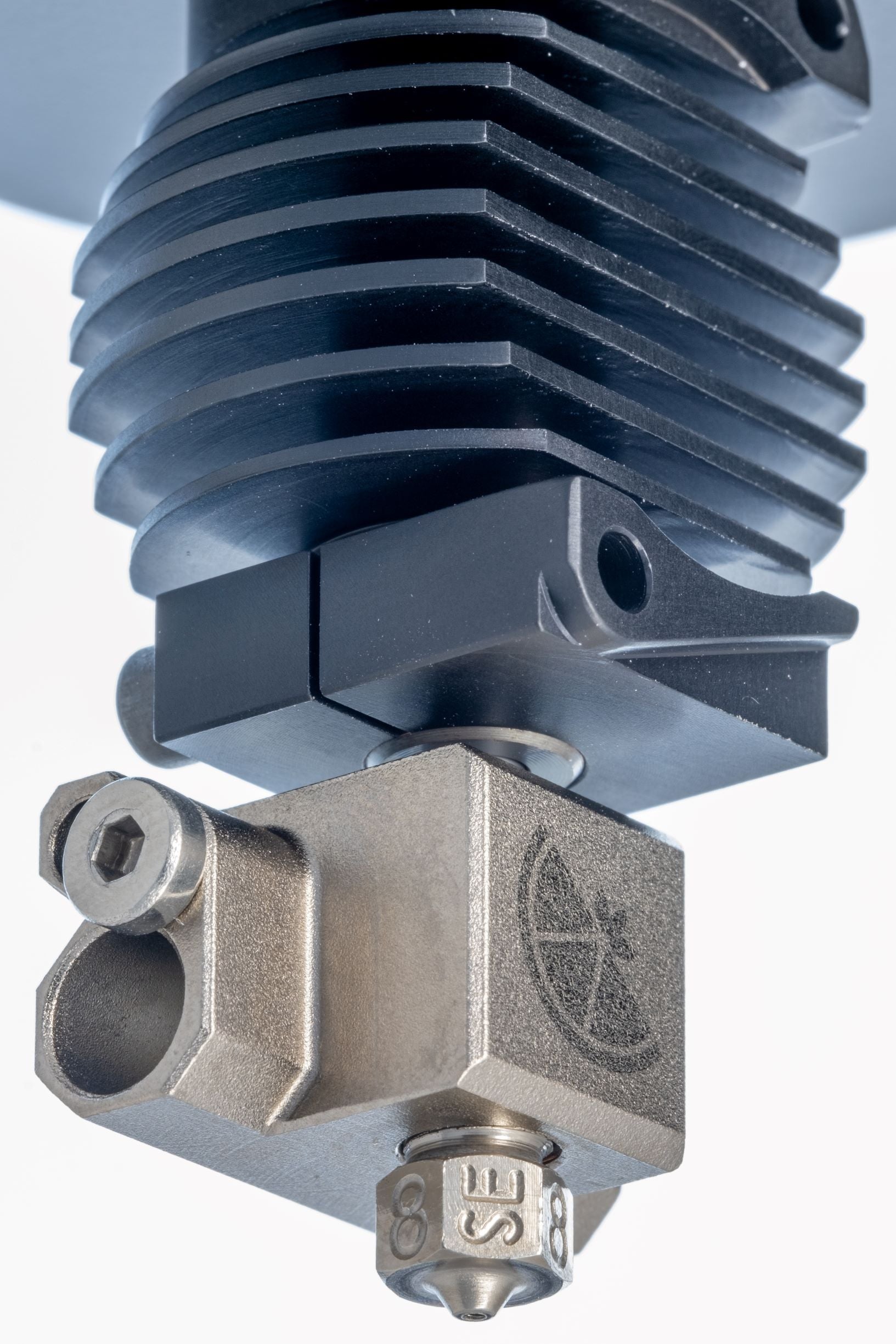

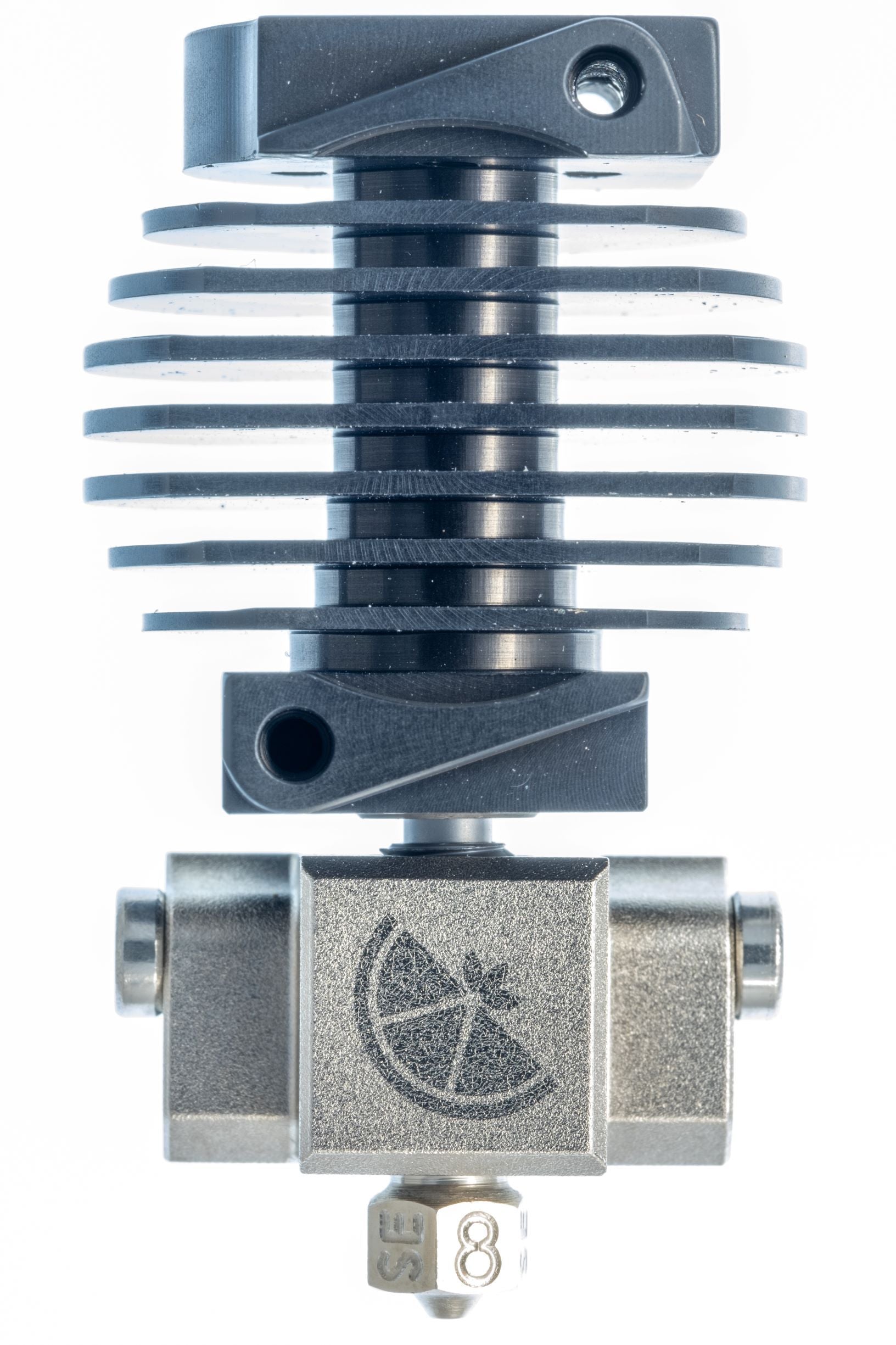

Copperhead™ Hotend- Slice Engineering

Replace your factory model hotend with the Copperhead™, to upgrade your 3D printer’s performance and reduce jamming, giving you a smooth print every time.

Unsure of which components to get?

Check out our Hotend Configurator on the Slice Engineering website to find everything you need to upgrade your machine.

The Copperhead can be installed on just about any printer, there are many adapter plates and connections that are printable or made from cnc, most are found here:

https://www.sliceengineering.com/pages/adapters

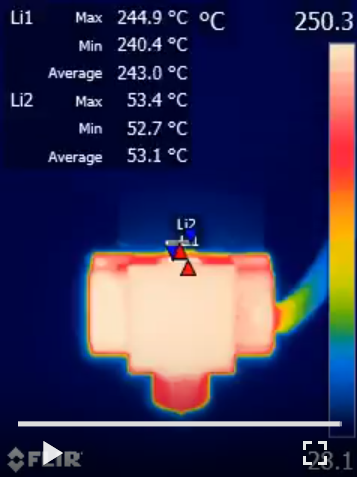

Unlike most materials, plastics don’t have a clean transition from solid to liquid during melting. As filament moves through the hotend, it heats up and reaches the material’s glass transition temperature (Tg), entering a semi-solid, semi-liquid, “gooey” state. While in this state, the plastic responds to applied forces like a wet noodle, causing undesirable print effects like reduction in resolution, blobbing and jamming. An efficient heat break narrows the physical distance during which the plastic is at it’s Tg, and thus improves 3D printer performance. The Bimetallic Heat Break™ from Slice Engineering® is the only heat break designed through the use of thermal imaging to optimize heat transfer.

Primary benefits:

• Heat sink designed optimized for noise reduction
• Bimetallic Heat Break™ technology
• Rate to 450°C to cover the gamut of 3D printable thermoplastics

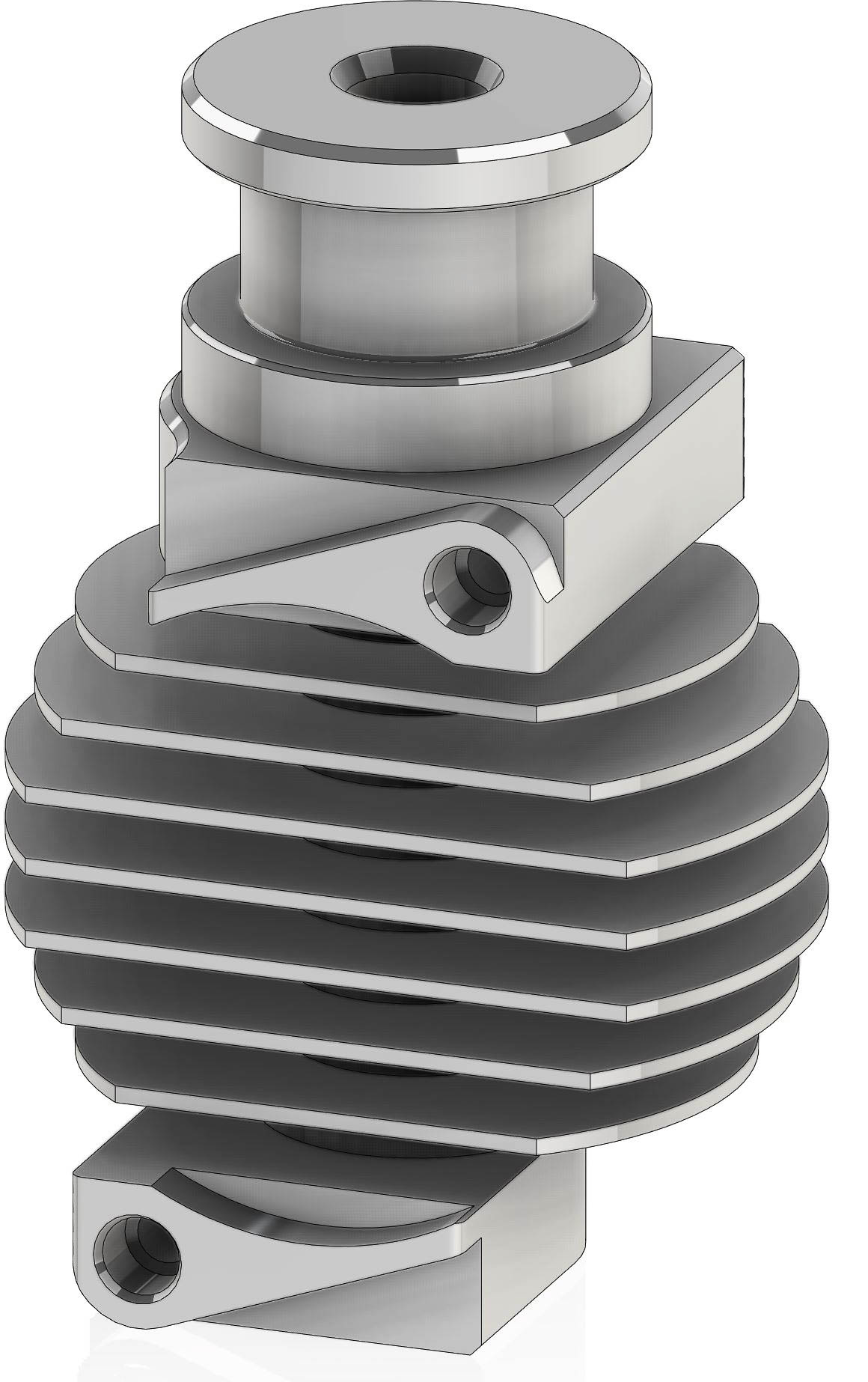

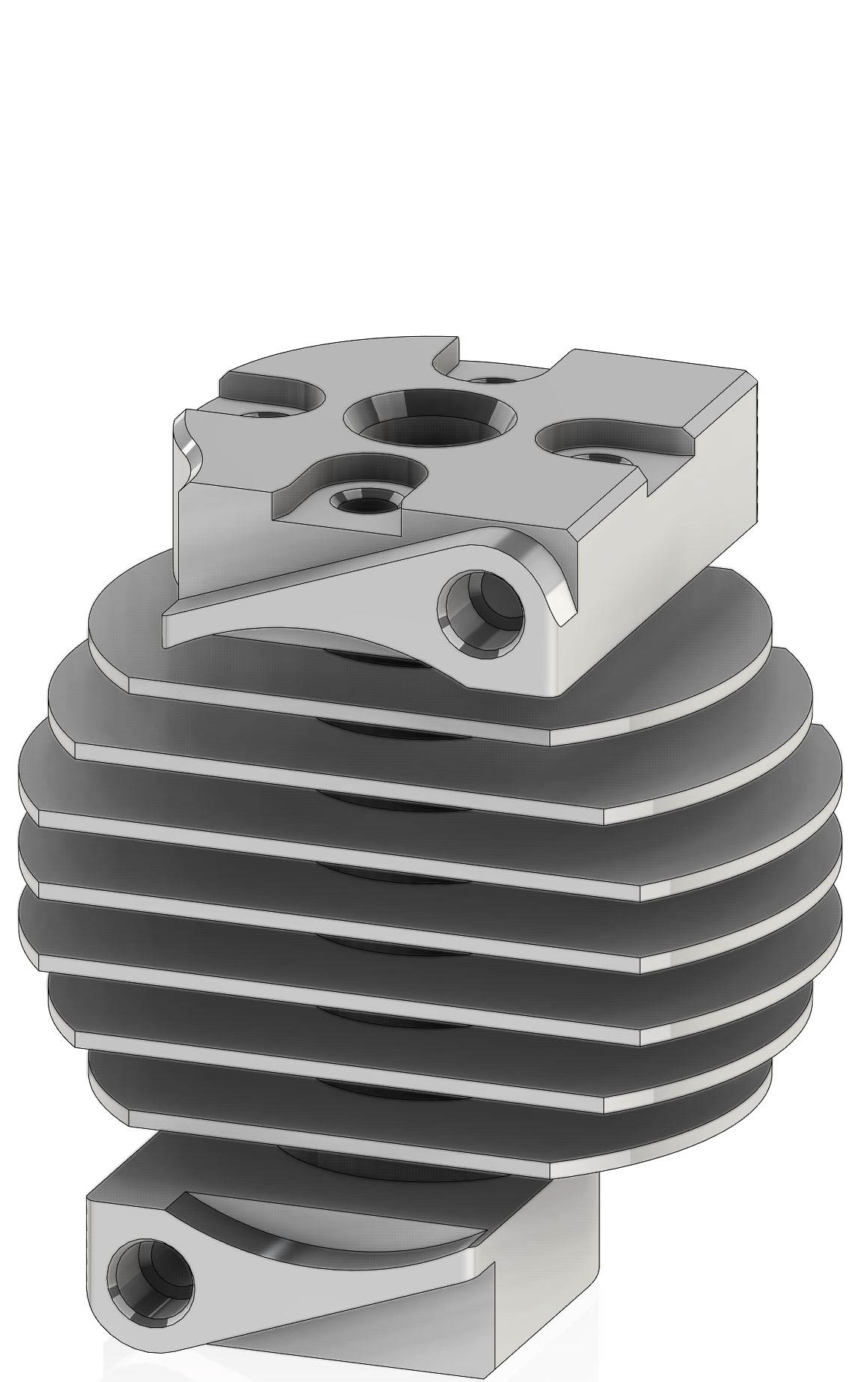

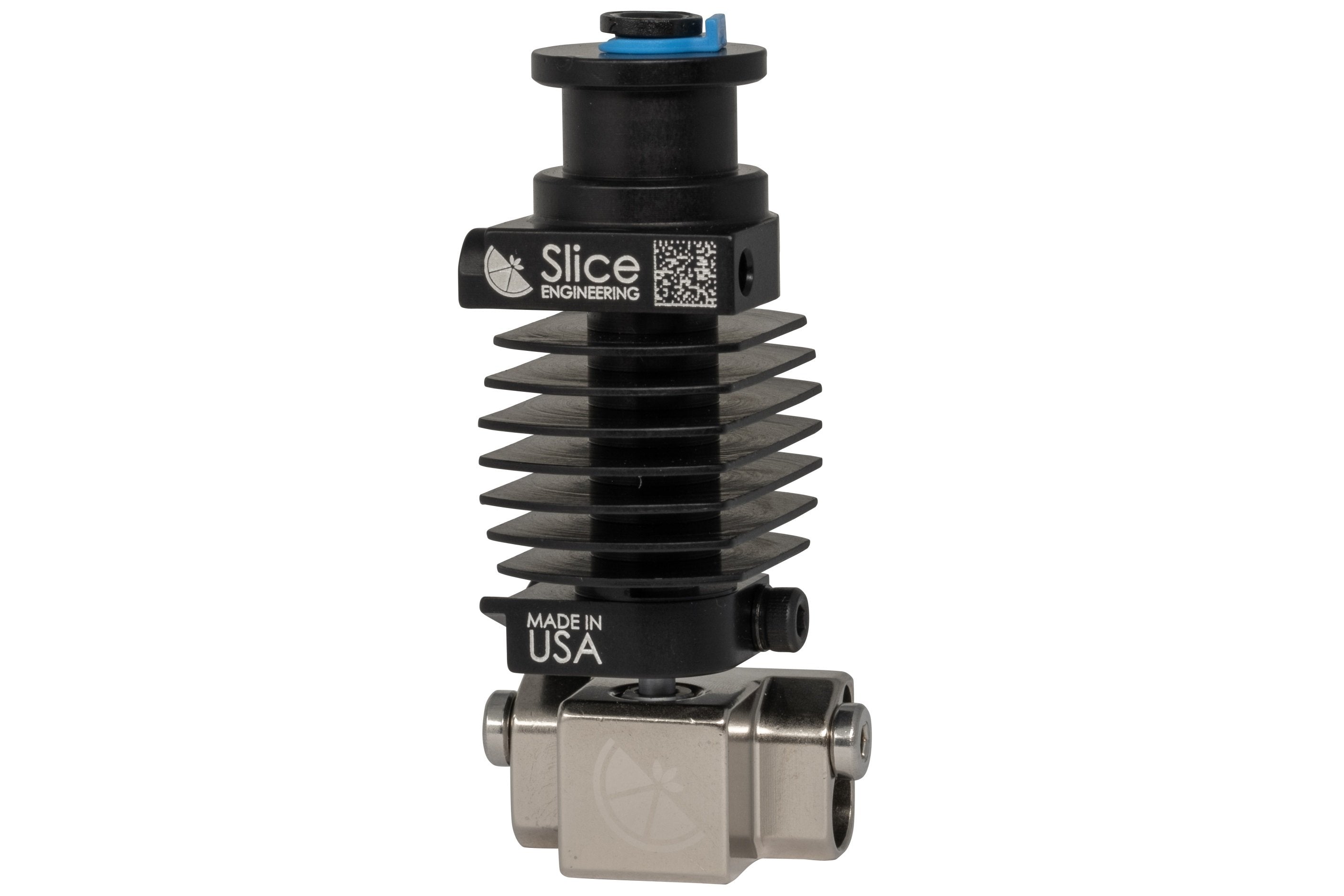

• Versatile mounting options, including a groove mount configuration for optimal flexibility
• Uses Rep Rap style nozzles
• Quick-swap capability for hot components
• Adjustable length to level multi-extrusion systems
• High-quality materials include a hardened copper alloy hot block, cold-worked stainless steel, and aircraft-grade aluminum
• Open source - published under a CC BY SA 4.0 license

What you get in the box:

Heat Sink

     • Selected Heat Sink

     • Mounting Hardware

Heat Break

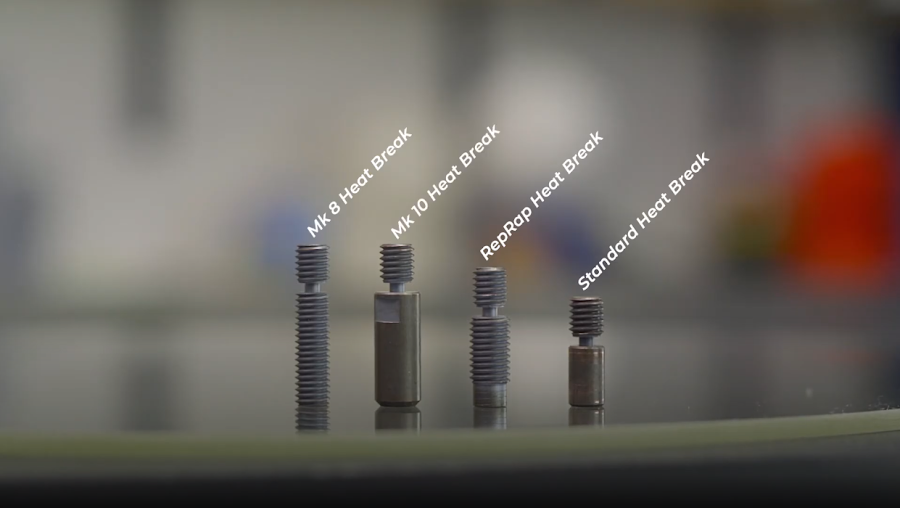

     • Standard Heat Break

Hot Block

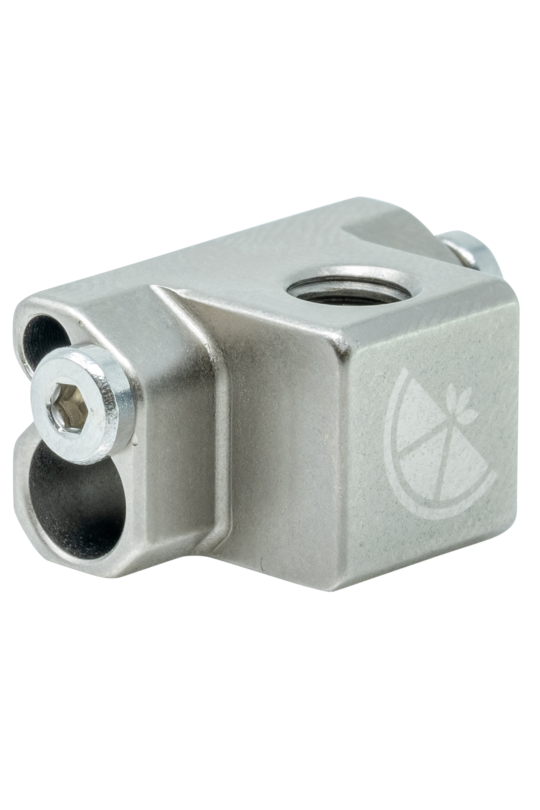

     • Copperhead Hot Block

NOTE: Nozzle NOT included, please select options here.

Select the parts that suit your printer from the selections below.

Needed to buy:

• High temp thermistor for the hotend- LINK here
• 12v or 24v Heater cartridge- LINK here
• 20mm fan  LINK here or print adapter to suit your voltage and fan
• Nozzle for your project- LINK here

3D Printer Compatibility Table
