Qiditech orders are currently being processed after production ran out and restocked post Chinese New Year. They are scheduled to depart China on the 10th of March for delivery in mid-April here in New Zealand.

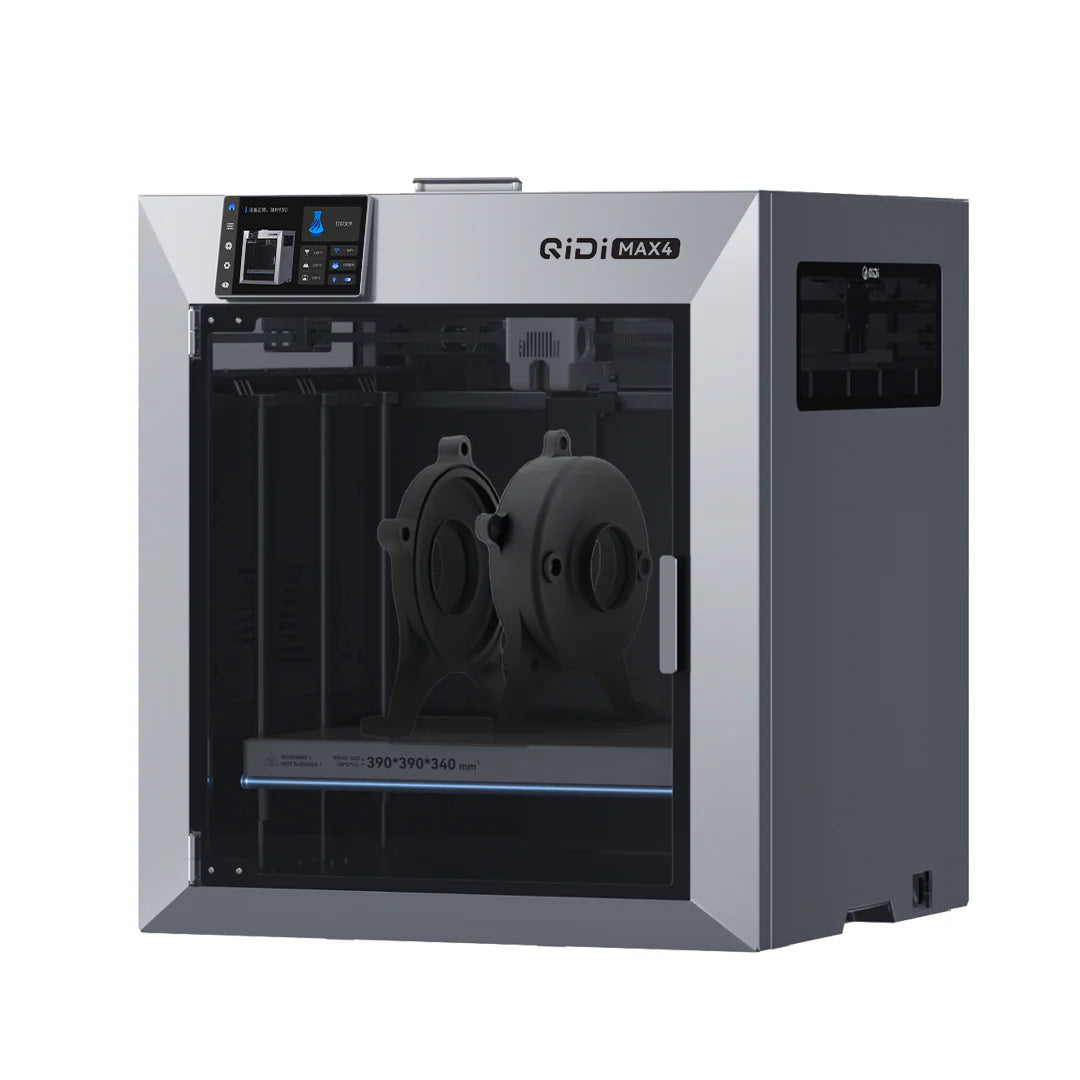

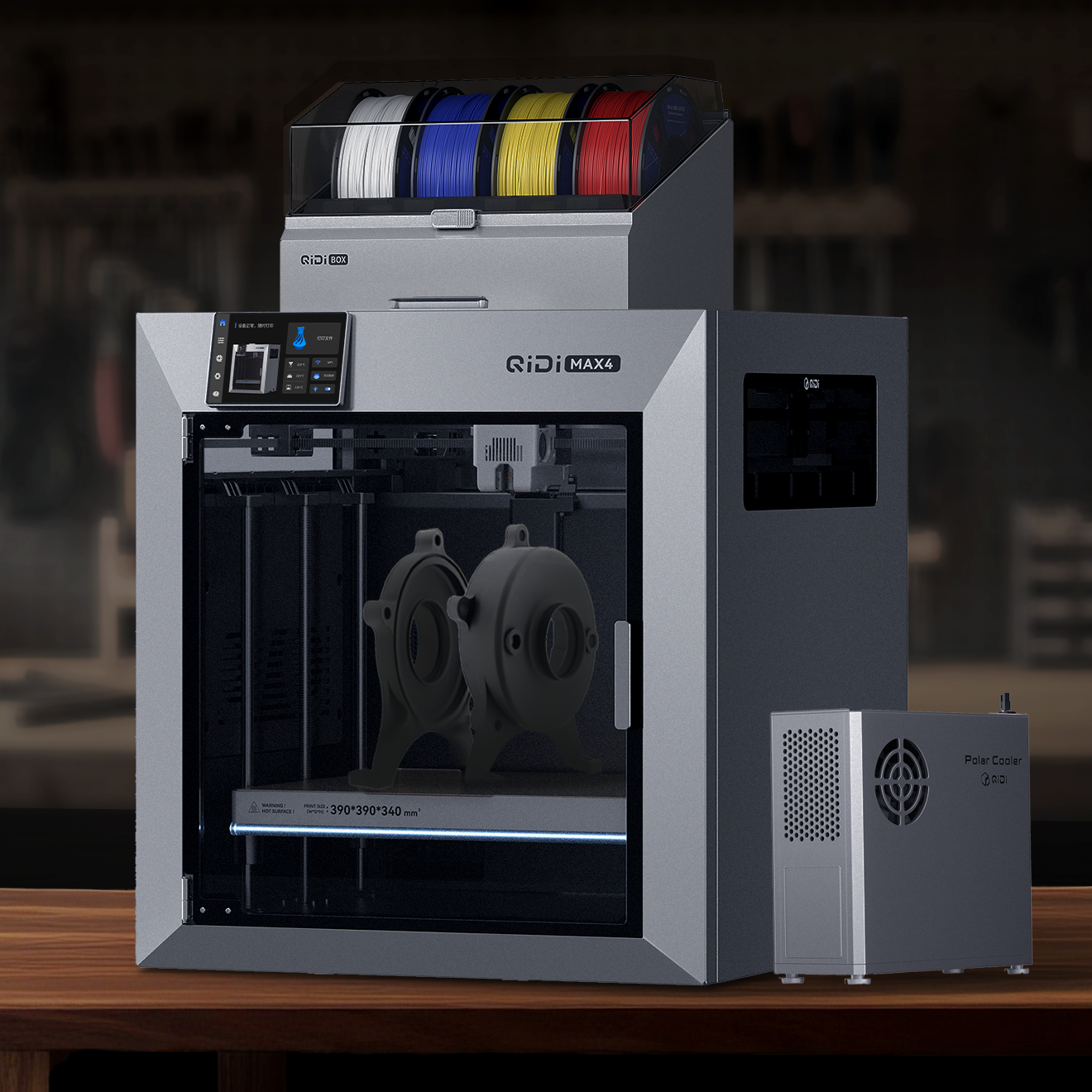

QIDITECH XMax4 3D Printer
QIDITECH XMax4 3D Printer
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

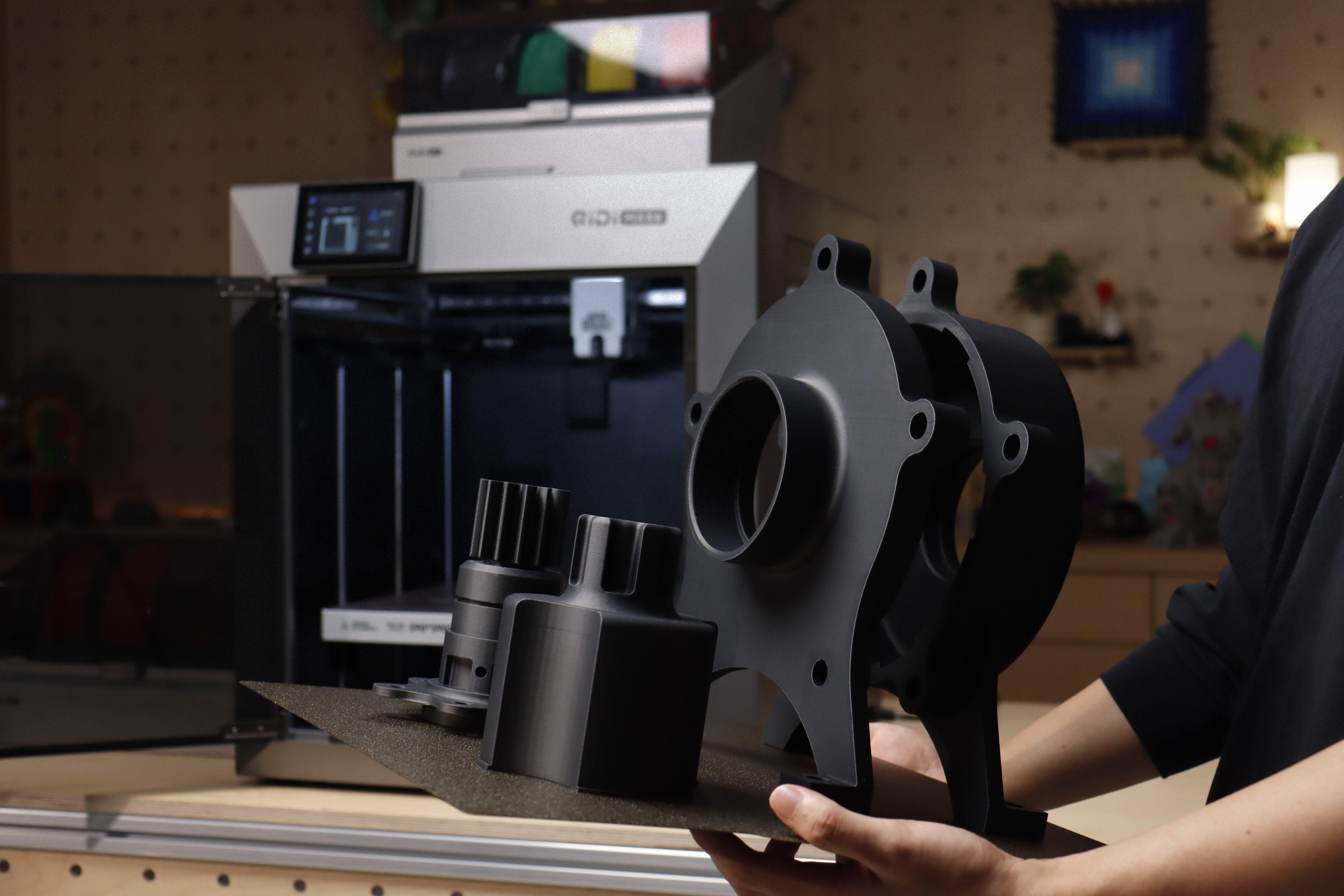

Unleash High-Temp Power. Master Multi-Material. Deliver Industrial-Grade Results
- Build volume 390x390x340 mm

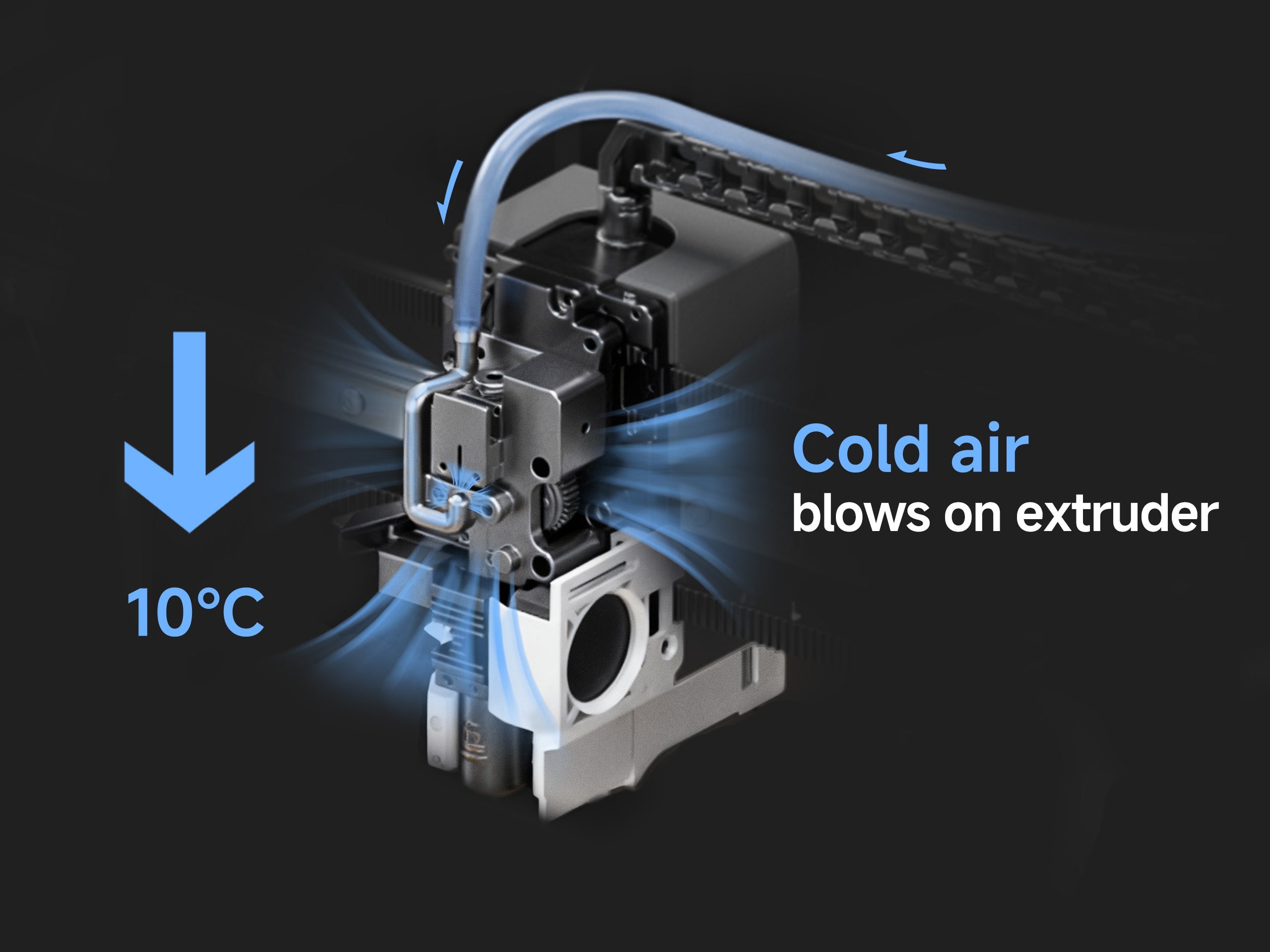

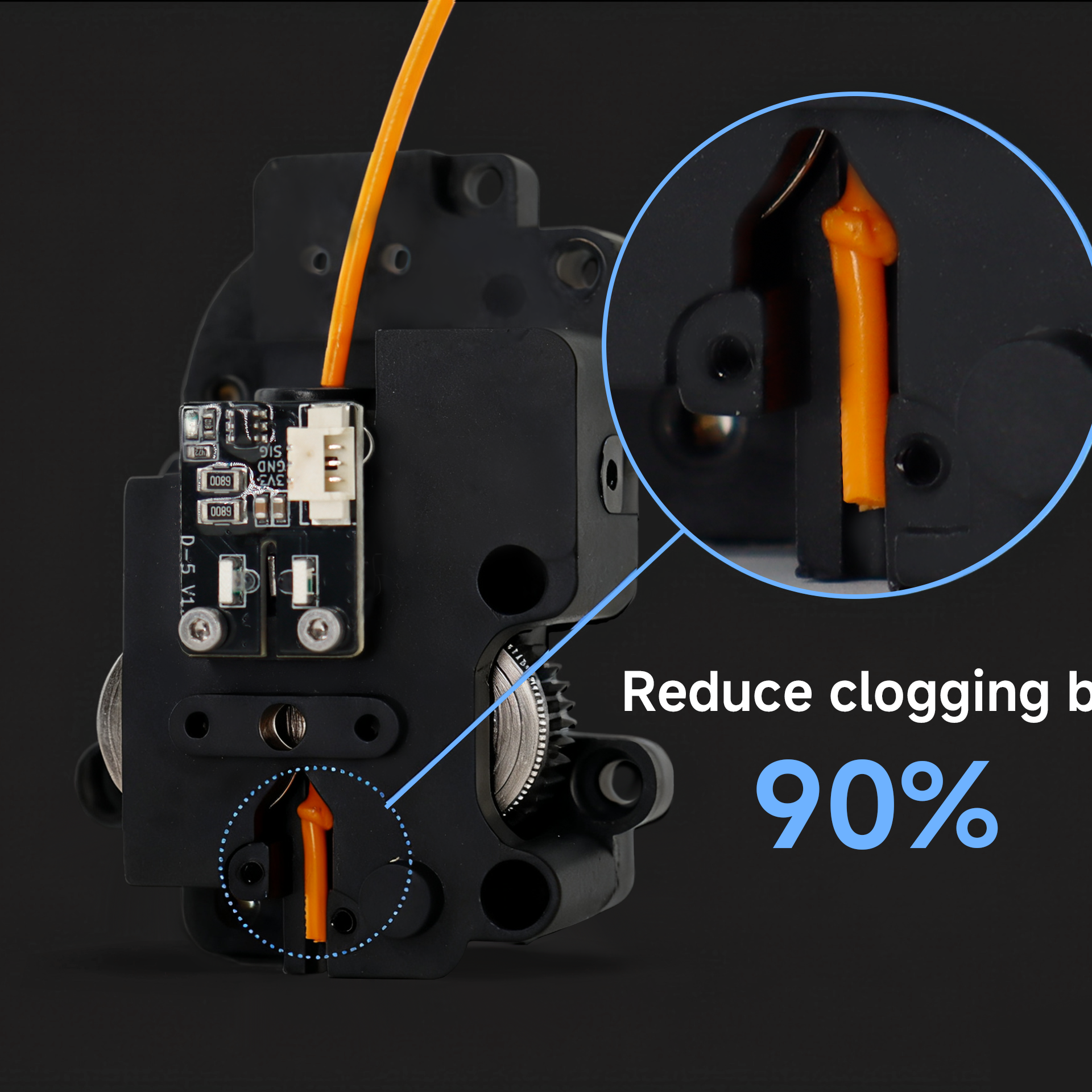

- Active cooling air control system: no clogging
- Adopt a 2 mm lead Z-axis screw, with anti-backlash nut
- 390×390 mm ultra-uniform heated bed
- AI camera ensuring every print
- Compatible with QlDl Box ( Multi-color )
QIDI Max4 Technical Specifications
|
Print Size (W*D*H) 390*390*340 mm |
Printer Dimensions 558*578*612 mm |
|
Package Dimensions 700*710*750mm |
Gross WeightMax4:49.5kg Max4 Combo:56kg |
|
Net WeightMax4:40kg Max4 Combo:46.5kg |

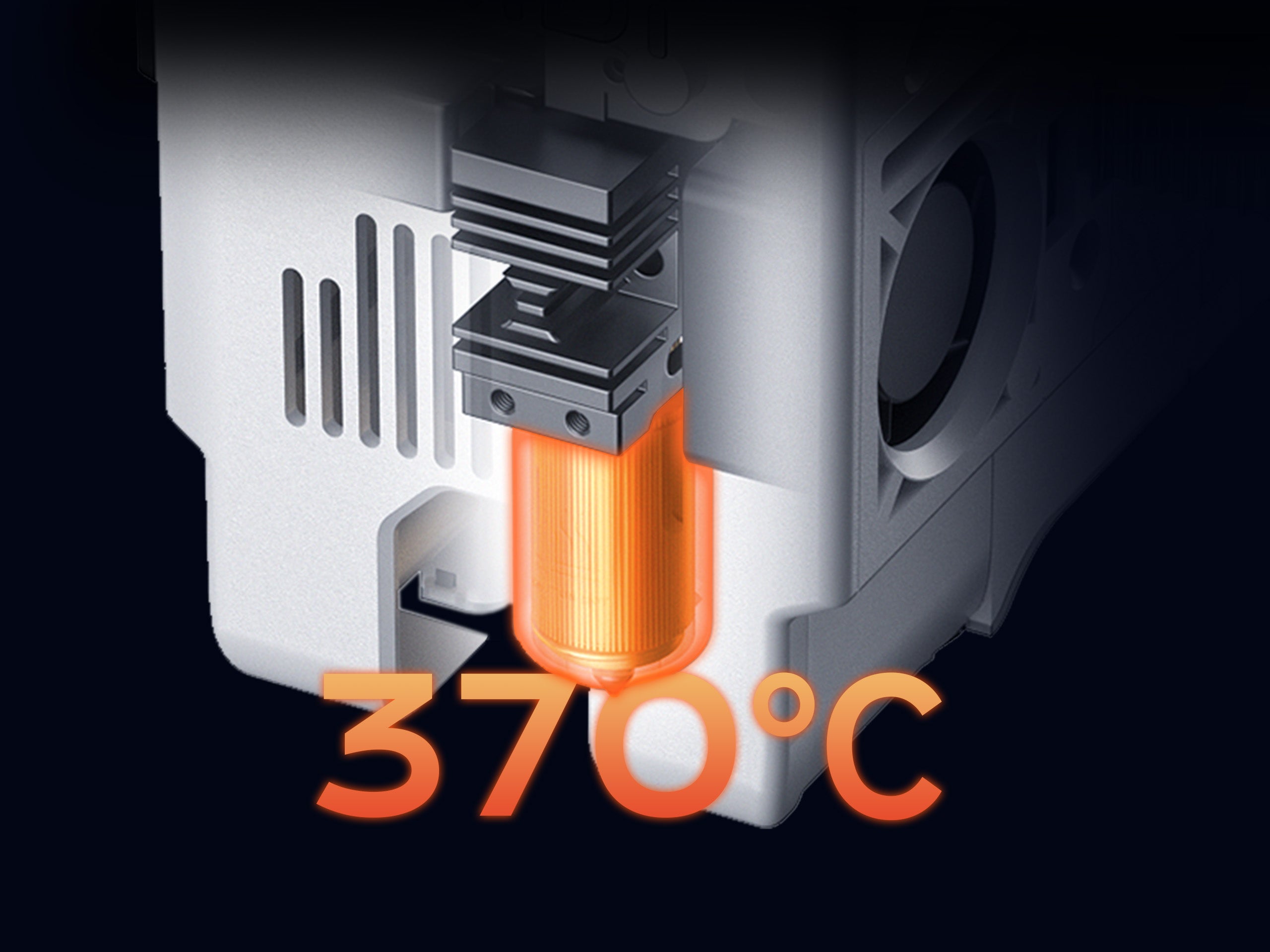

Print Head Temperature≤ 370℃ |
|
Included Build Plate TypeDual-Sided Textured PEI Plate |
Hot Bed Temperature≤ 120℃ |
|
Max Speed of Tool Head 800mm/s |
Acceleration ≤30000mm/s² |
|

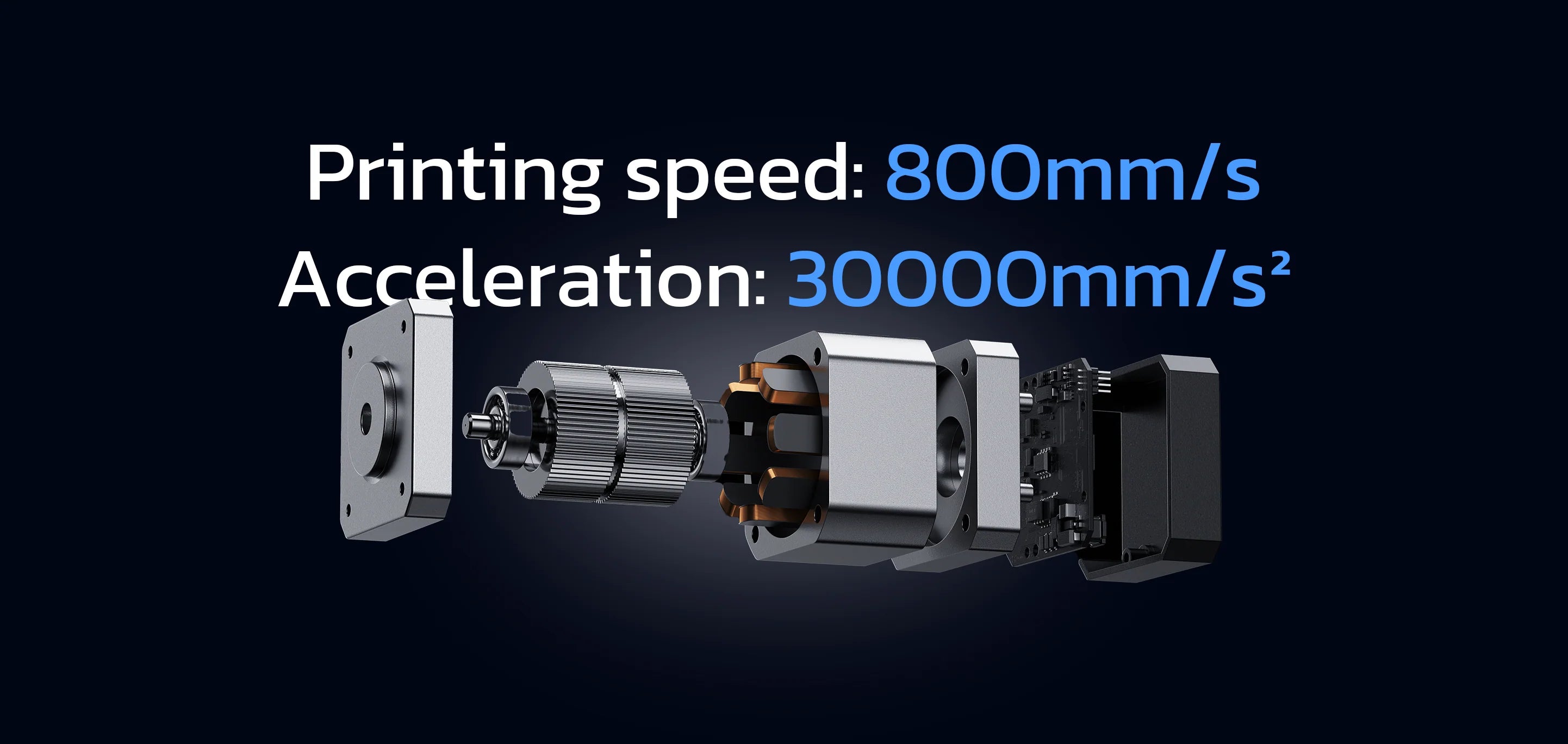

XY StructureCoreXY, 1.5GT 10mm Width Belt FOC Closed-loop Stepper Motor |
X/Y AxisX: High Hardness Linear Guide Rail Y: 12mm Linear Steel Shafts |
|
Z AxisIndependent 2mm lead screw motors ×2 12mm Linear Steel Shafts ×4 |
Printing PlatformAluminum Plate Silicone Heated Bed |
| NozzleBimetal Nozzle | Nozzle Diameter0.4mm （0.2/0.6/0.8mm Optional） |
|
Extruder Gear Direct Extruder Hardened Steel Dual Gears |
Supported Filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc. |
| Filament Diameter1.75mm | Multi-Color Printing Compatible with QIDI Box(Multi-color) |
| Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon） |

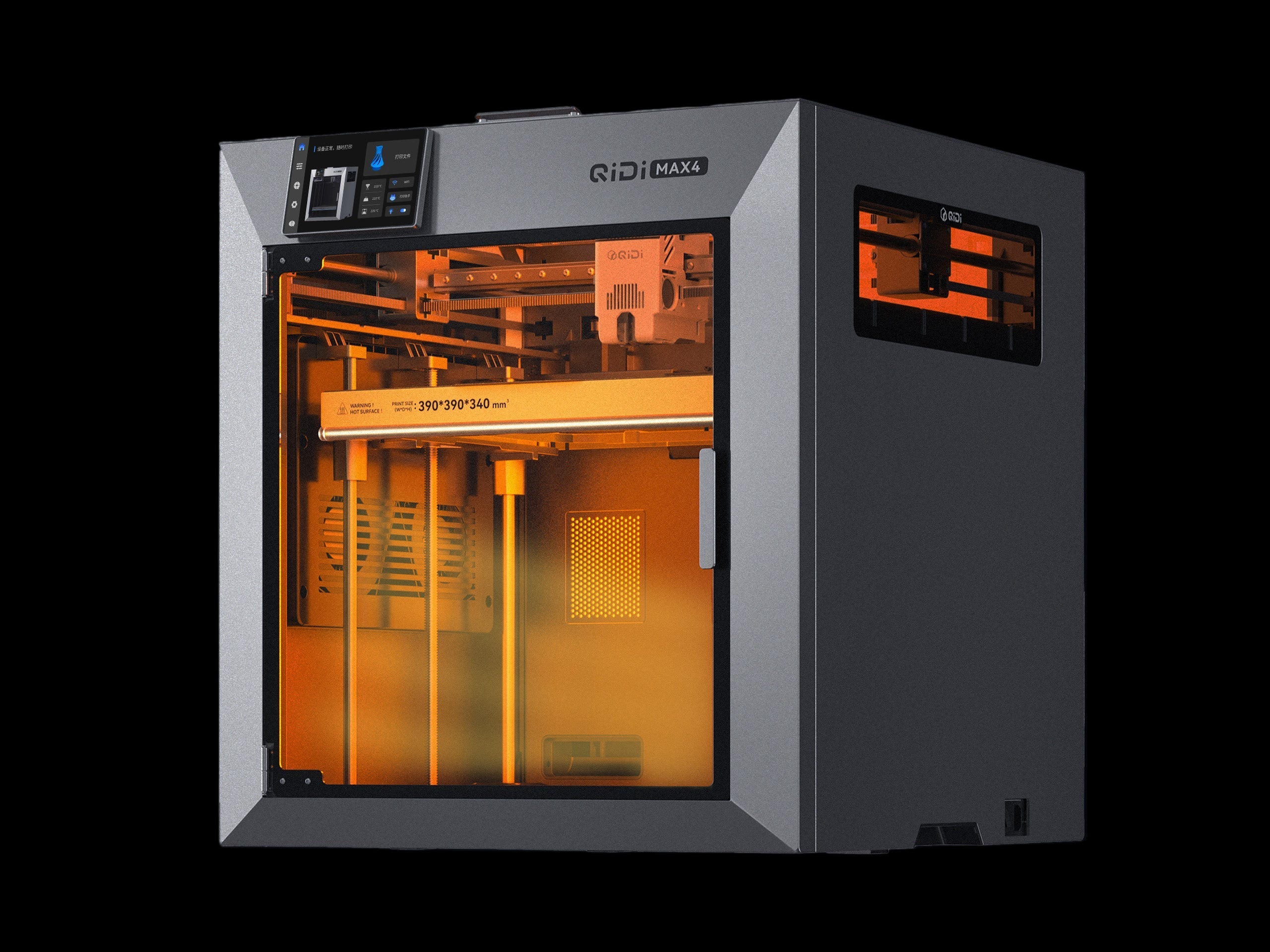

Chamber Temperature(PTC Heater)3rd Gen Up to 65° C Independent Chamber Heating |
|

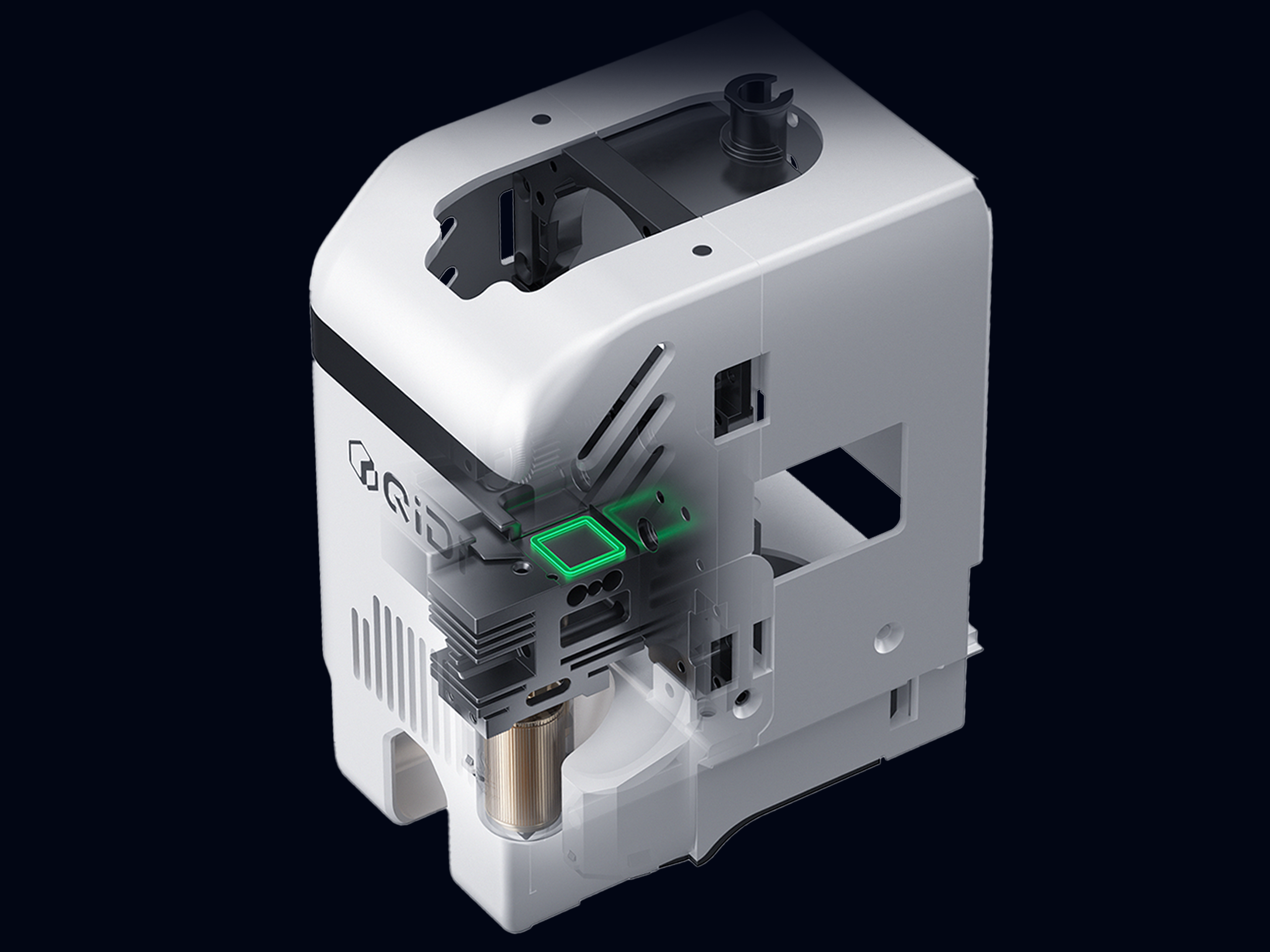

Automatic LevelingHands-free Automatic Leveling （Loadcell Sensor Integrated into the Hotend） |
Filament DetectionRun Out Sensor(mounted above extruder) Tangle Detection(QIDI BOX required) |
| AI Camera DetectionYes | Auxiliary Part Cooling Fan4-Pin PWM Fan with RPM Feedback |
| Hot End Cooling Fan4-Pin PWM Fan with RPM Feedback | Model Cooling Fan4-Pin PWM Fan with RPM Feedback |

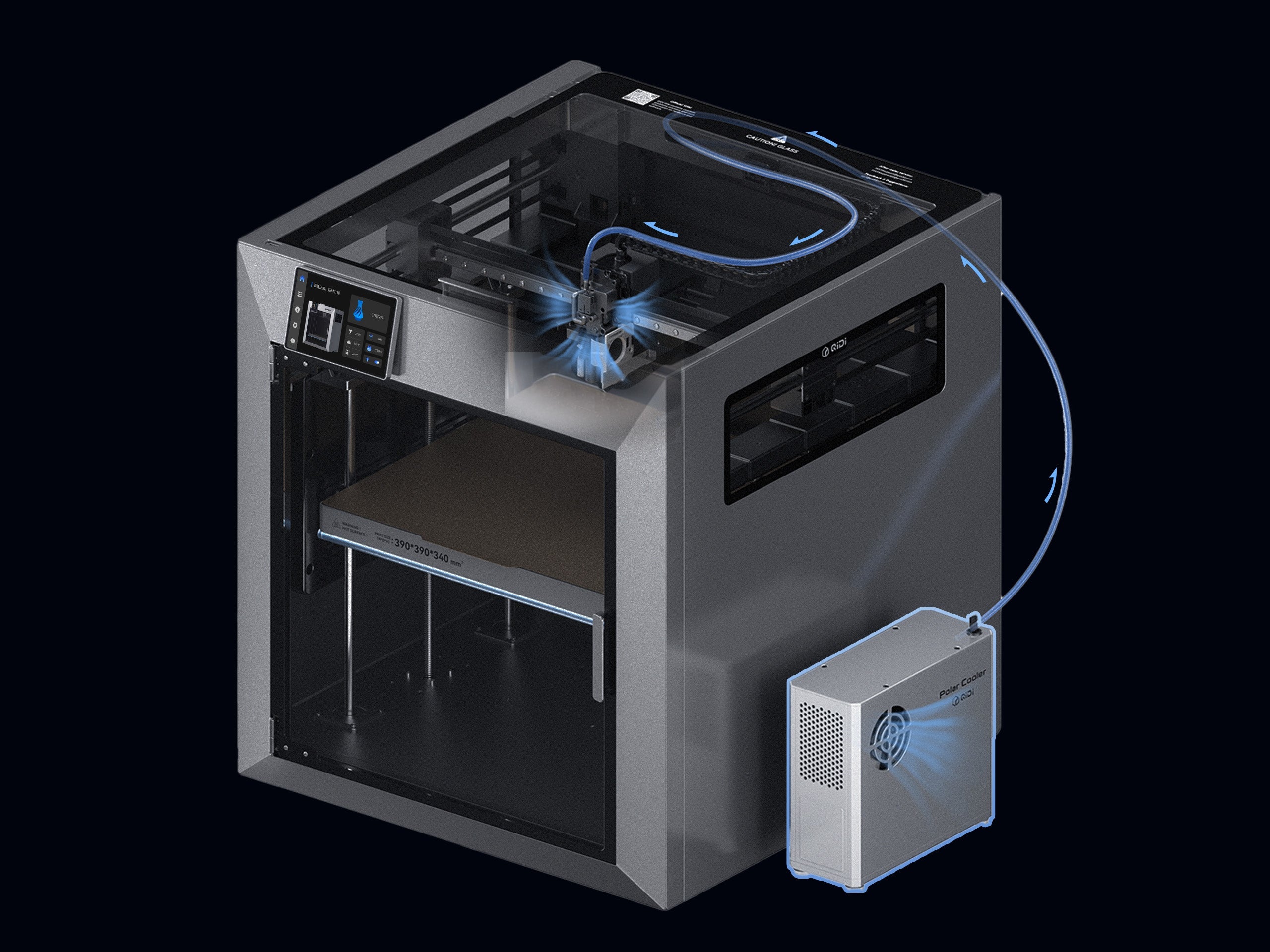

| Extruder CoolerYes (Polar Cooler required) | Status RGB LEDYes |
| Power Loss Recovery：Yes | Input ShapingYes |
| Voltage110V / 220–240V AC, 50/60Hz (region-specific models available) | Rated Power150W+500W(Chamber Heating)+700W(Heating Bed) |
| CameraCamera (Up to 1080P) Timelapse Supported | Storage32G EMMC and USB2.0 Flash Drive |
| Connectivity 2.4GHz/5GHz Wi-Fi, Ethernet, USB | Display Screen5 Inch 800*480 Touch Screen |
| SlicerQIDI Studio and other third-party software, such as Orca,PrusaSlicer etc. | File Formats for Slicing STL, OBJ, 3MF,STEP,STP，etc. |
