Powerful - Reliable - Scalable

Element HT by Mosaic

High -Temperature Desktop 3D Printer
Mosaic Element HT2
Mosaic Element HT2
Mosaic Element HT2
Mosaic Element HT2
Mosaic Element HT2
Click to open expanded view

Buy together & save

Mosaic Element HT2
Mosaic Element HT2
$18,250.00
CARBONX™ PA12+CF Reinforced Nylon 12 Filament
CARBONX™ PA12+CF Reinforced Nylon 12 Filament
$162.00
Magigoo Glide Kit 250
Magigoo Glide Kit 250
$159.95
Total price: $18,571.95

Mosaic Element HT2

Price
$18,250.00
Tax included. Shipping calculated at checkout.
Available for pre-order
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share E-mail

Product Features:

Element HT2

1 Element HT Printer

2 Material Pods

1 HT Print Head

1 LT Print Head

2 Type I Beds
2 Type II Beds
Tool Kit

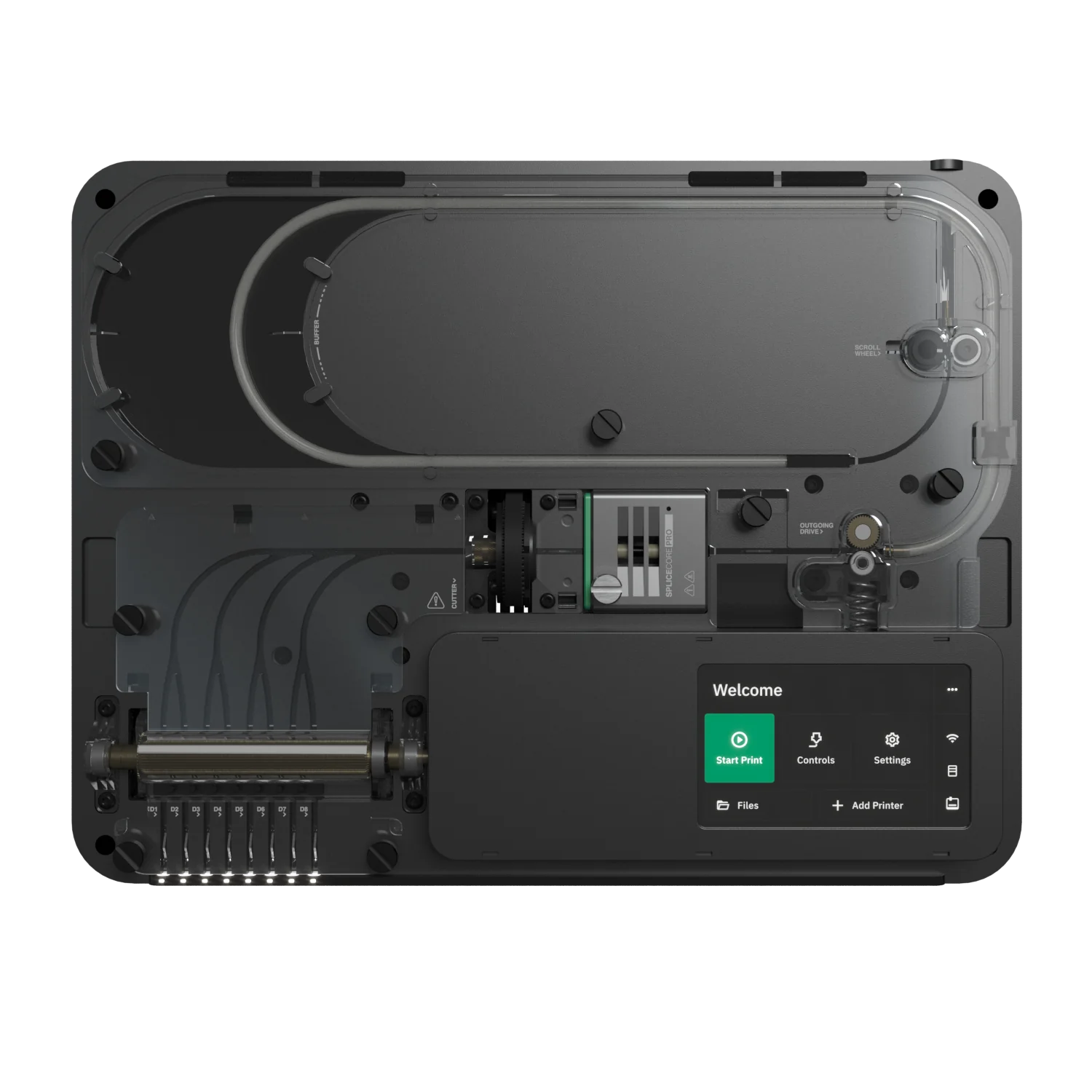

Palette 3 Pro built into the Element
Product Technical data
  • Dimensions:  911mm x 613mm x 633mm (with 8 Material Pods attached)
  • Net Weight:  43kg (95lbs) (Printer, no material pods attached)
  • Gross Weight:  57kg (125 lbs) (With packaging, 2 Material Pods in box)
  • Print Technology: Fused Filament Fabrication (FFF) enhanced with Mosaic’s patented Series Enabled Multi-Material Extrusion (SEME)
  • Build Envelope: 355mm x 355mm x 355mm
  • Construction:  Durable, all metal motion systems
  • Power Supply Input: 240V AC, 50/60 Hz, dedicated circuit required
  • Layer Resolution:  20-320 microns
  • XYZ Resolution: 12.5μm, 12.5μm, 0.4μm (X ,Y, Z)
  • Max Speed (Travel): 200mm/s
  • User Interface: 5” color touch screen or remote access from Canvas
  • Monitoring: Live camera inside chamber
  • Status Indication: RGB stack light
  • Nozzle: 0.4mm hardened steel nozzle
  • Compatible Models: Print Head 0.4, Print Head 0.4 HT
  • Serviceability: Modular extruder, tool-less removable in < 60 seconds

Schedule an in-house demonstration

We possess an in-house Element HT print prepared for showcasing the system. Kindly schedule an appointment to visit Formtech HQ for a demonstration, contact Jason on 0274 940 250

Powerful

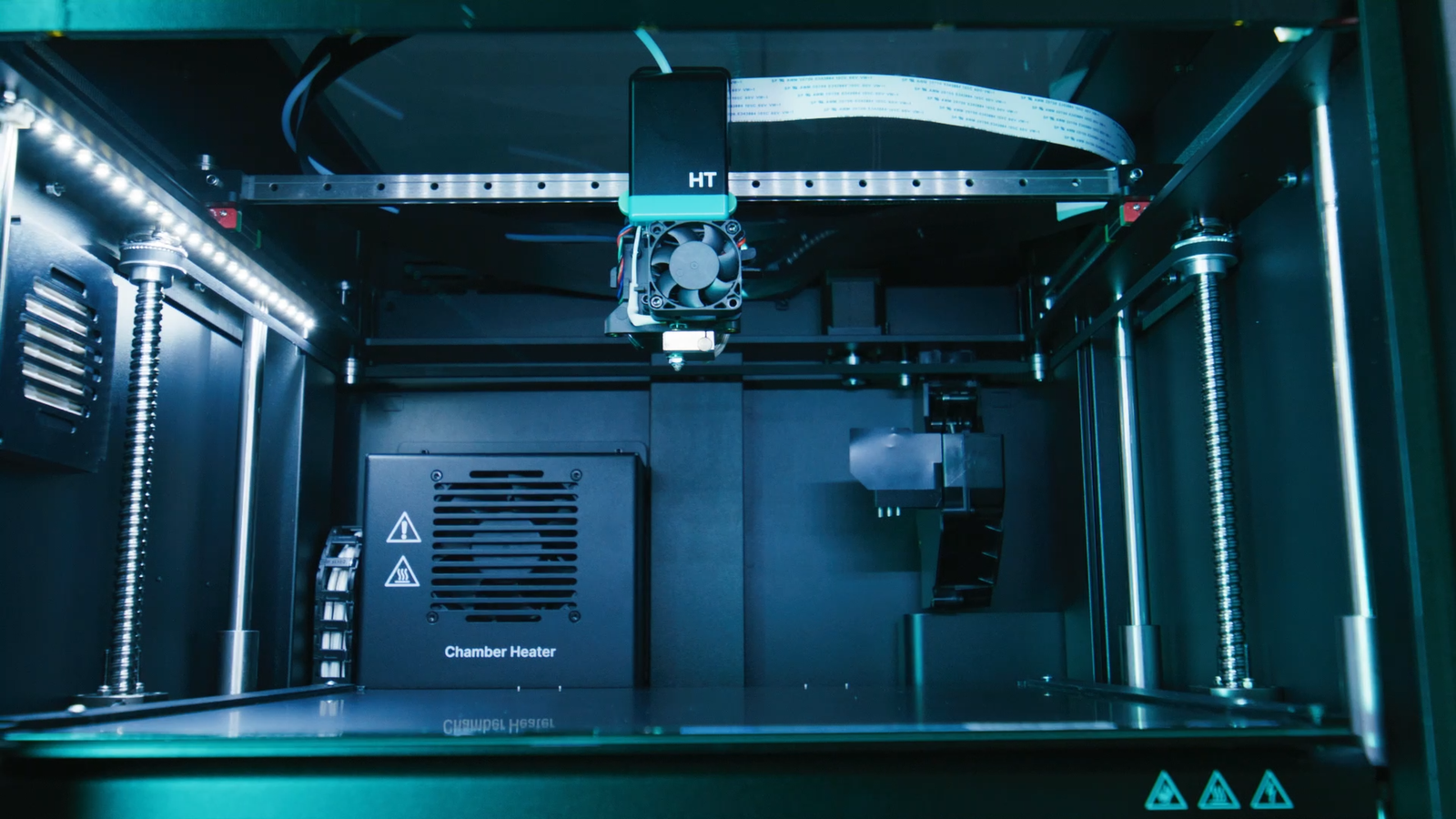

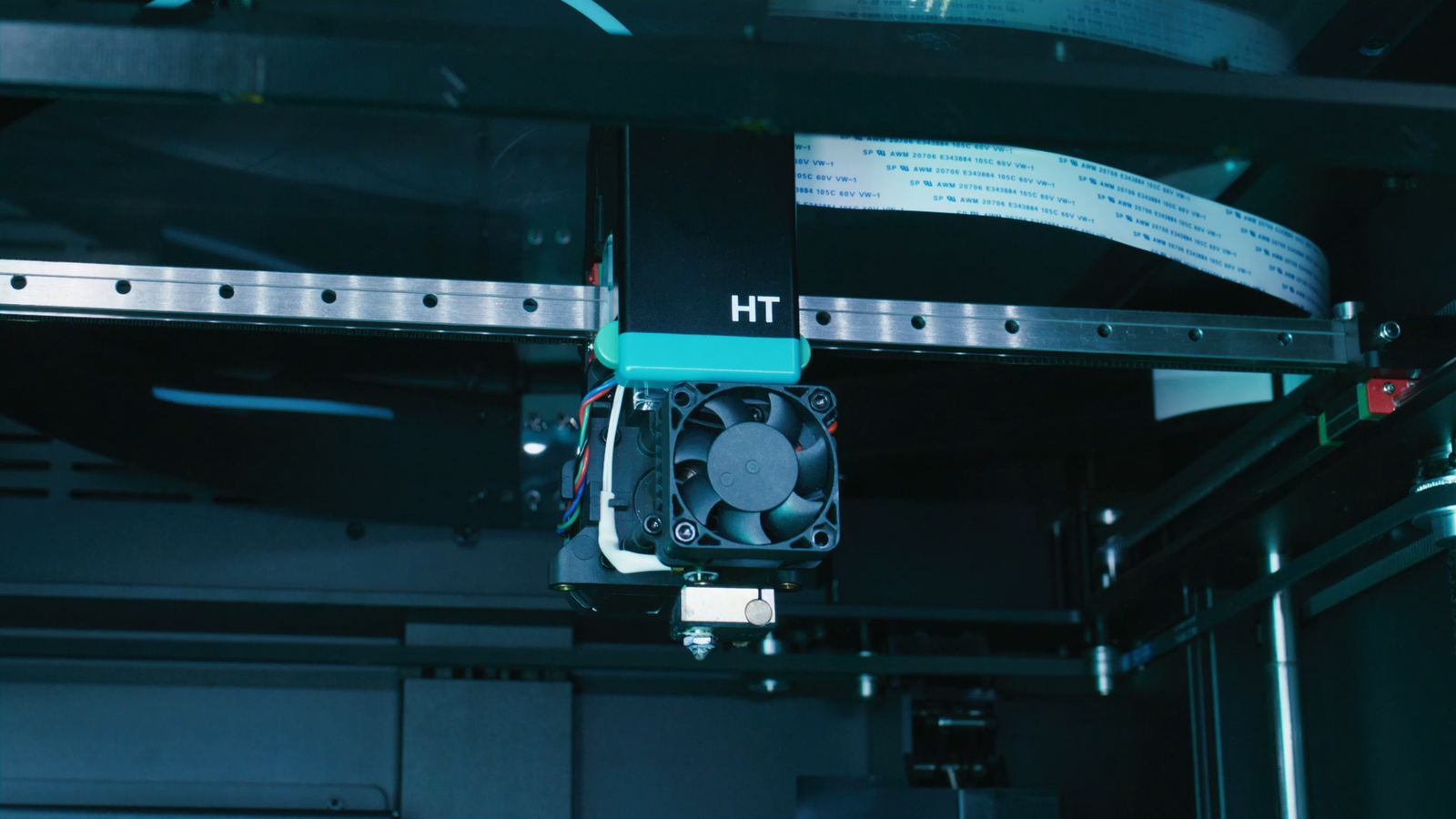

With a hot-end temp. of up to 500°C, and a heated chamber, Element HT allows you to print high strength parts for the most demanding applications.

Reliable

With an all metal gantry and a precision motion system, Element HT was developed with manufacturing level reliability in its DNA.

Flexible

Element’s 355 x 355 x 355mm build volume to print with up to 8 materials in a single part including rigid, flexible, and soluble support material in your prints.

Automated Material Switching

Choose your material in Canvas, let your Element handle the rest.

Element will autoload your material to let you focus on more important things.

Manage Team Workflow With Canvas

Control all your printing workflows with Canvas. Prepare your multi-material prints, start and view print status, plus manage all of your projects all in one place.

Product information

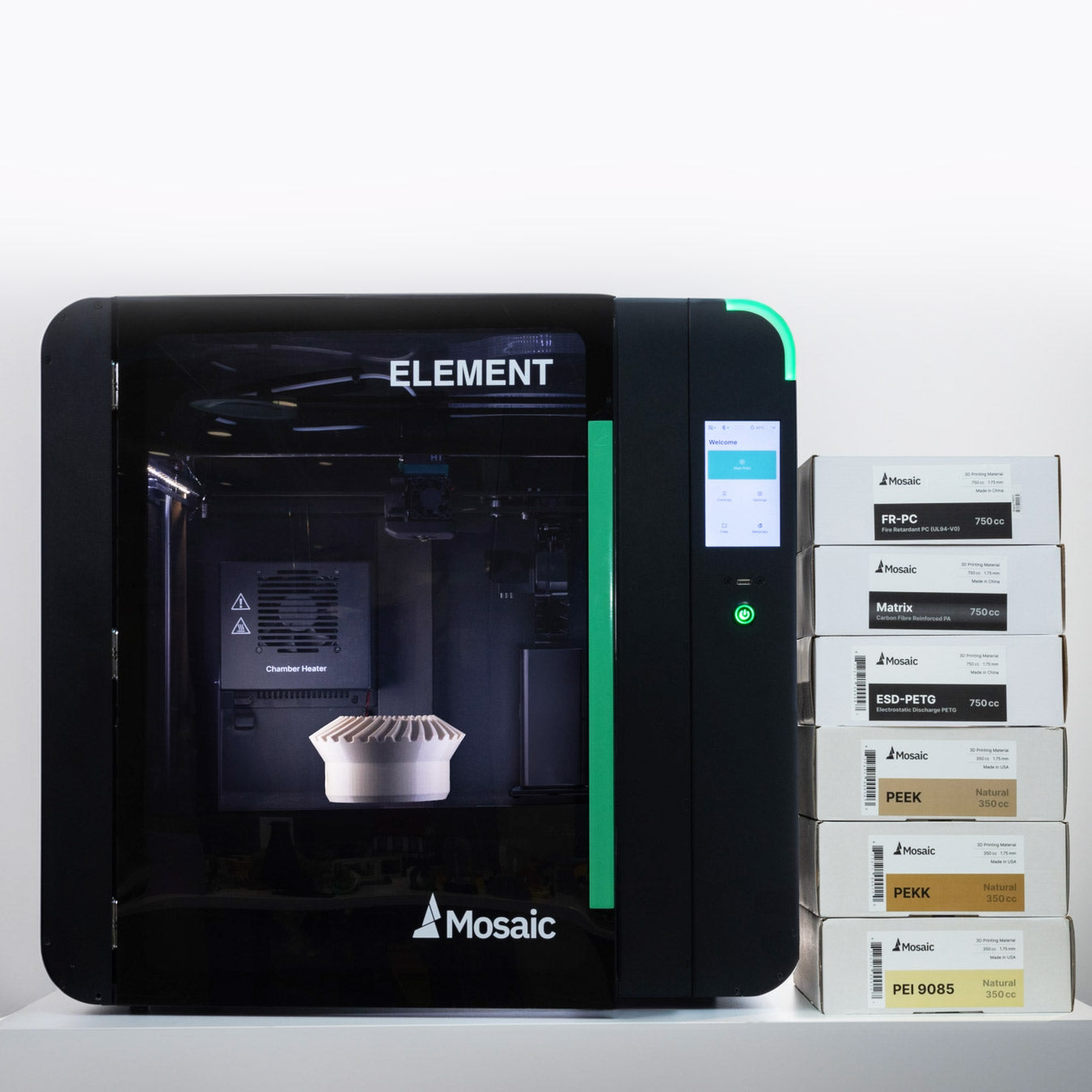

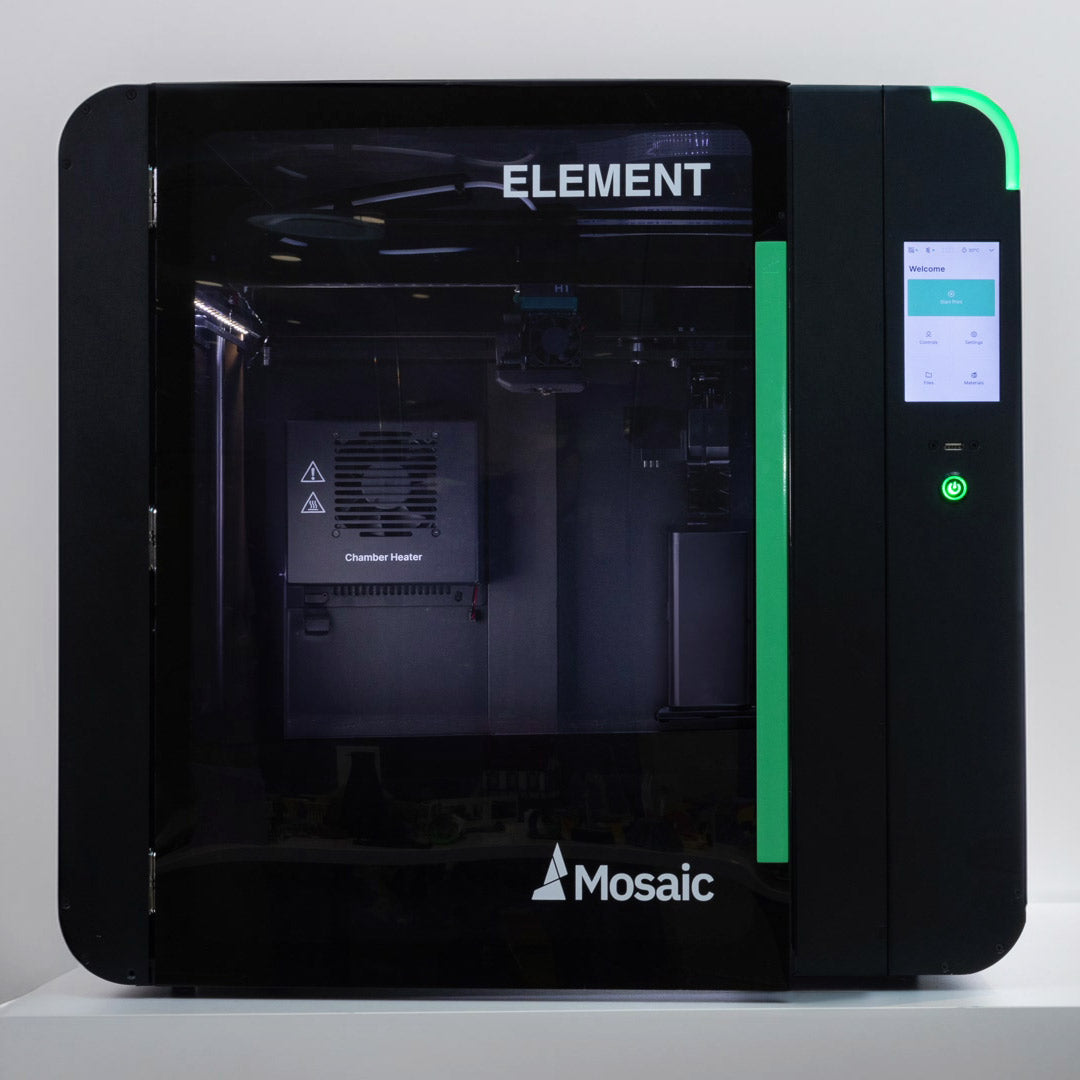

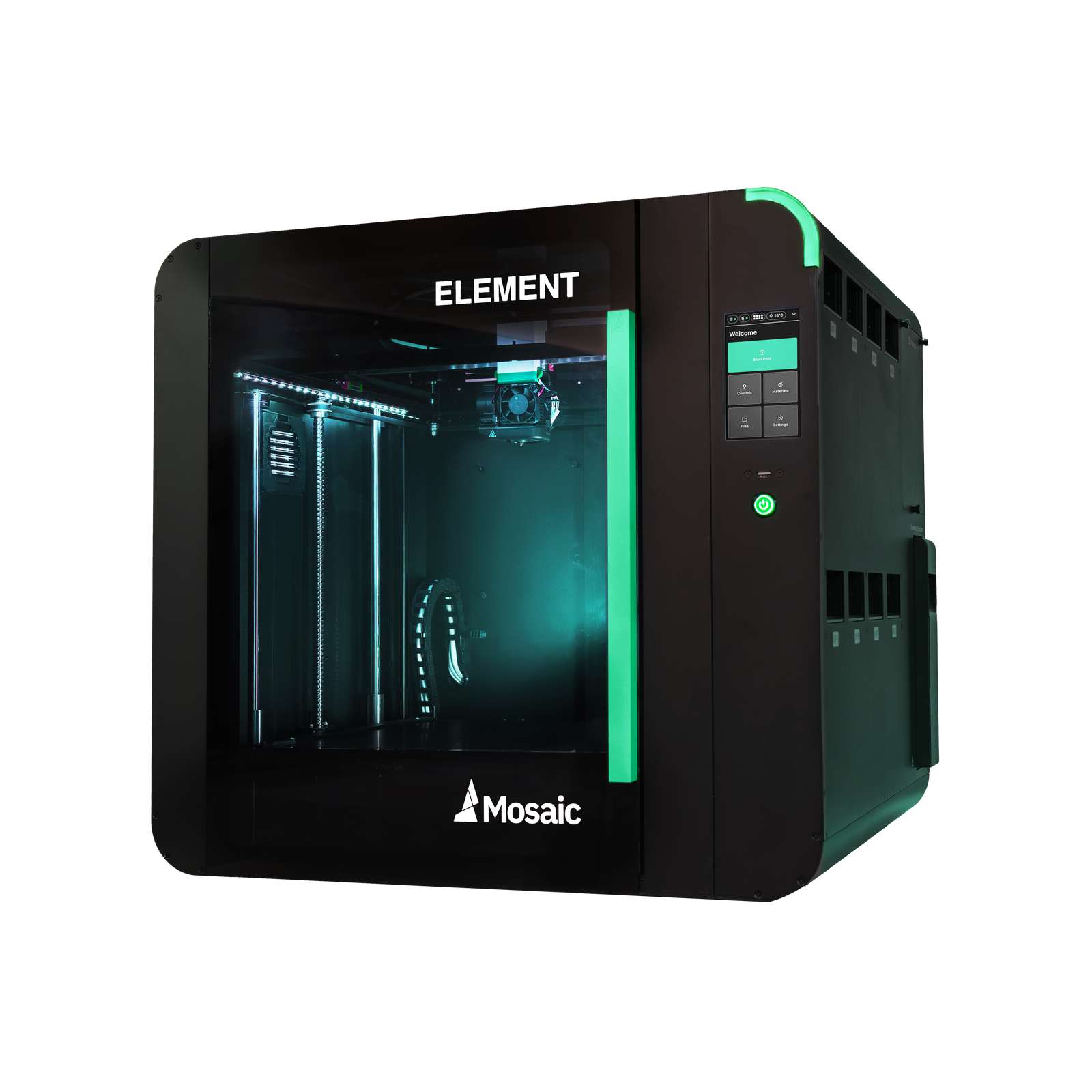

High Temperature, Multi-Material 3D Printer

Pushing the envelope of 3D printed materials with high temp compatibility. The only printer with built-in 8 material 3D printing capabilities out of the box.

Element HT2

  • 1 Element HT Printer

  • 2 Material Pods

  • 1 HT Print Head

  • 1 LT Print Head

  • 2 Type I Beds

  • 2 Type II Beds

  • Tool Kit
