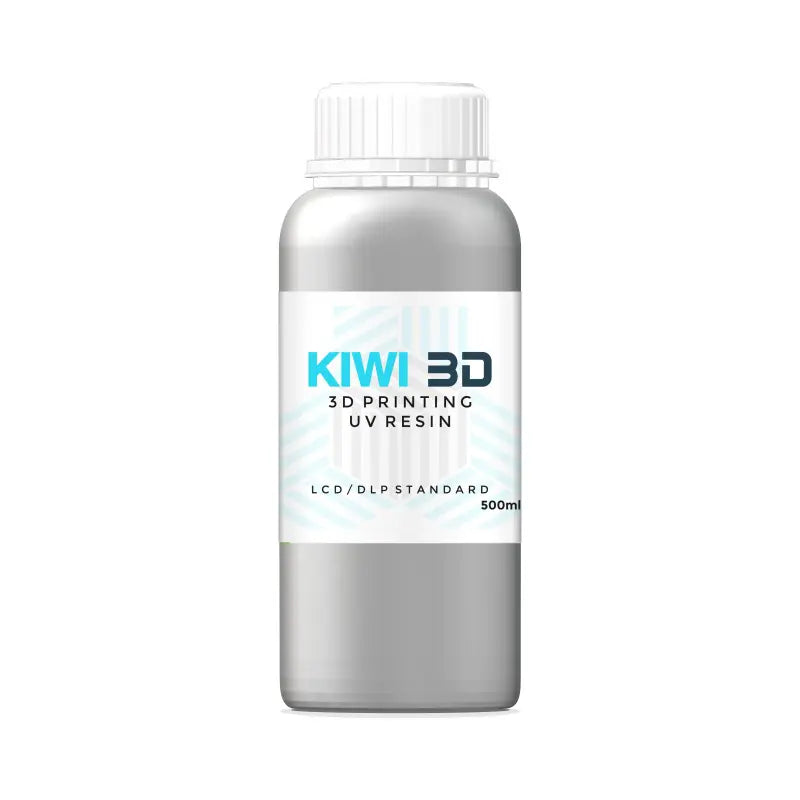

Kiwi3D LCD/DLP Standard Resin 500ml

Kiwi3D resin is suitable for most LCD/DLP UV-curable 3D printers with the wavelength 405nm. Making it completely compatible with ANYCUBIC, ELEGOO, EPAX and Phrozen Shuffle XL, Wanhao D8 & more.

Fast curing speed, high accuracy, low shrinkage, a combination of stiffness and toughness & low odor make it a great choice for electronic products, cosplay props, D&D miniatures, custom DIY designs, education and other fields. Available in 6 vibrant colours.

Resin parameters

Solidify Wavelength: 405nm
Viscosity 300-320 MPa.s
Density: 1.10 g/cm3

Parameters of Cured Product
Critical Exposure: 10mJ/cm2
Hardness(D): 75D
Curing Depth: 0.1mm
Elongation at break: 10%
Impact Strength: 120 J/m
Tensile Strength: 40-50 MPa
Bending Strength: 40-55 Mpa
Flexural Modulus : 800 MPa
Temperature Resistance: 80°c
Volume Shrinkage: ±0.4%

LCD Printing Settings

Bottom exposure time: 60 second
Normal layer exposure time: 10 second
Top support diameter: 0.8mm
Support diameter: 1mm
Support density: 50%
Support angle: 40°
