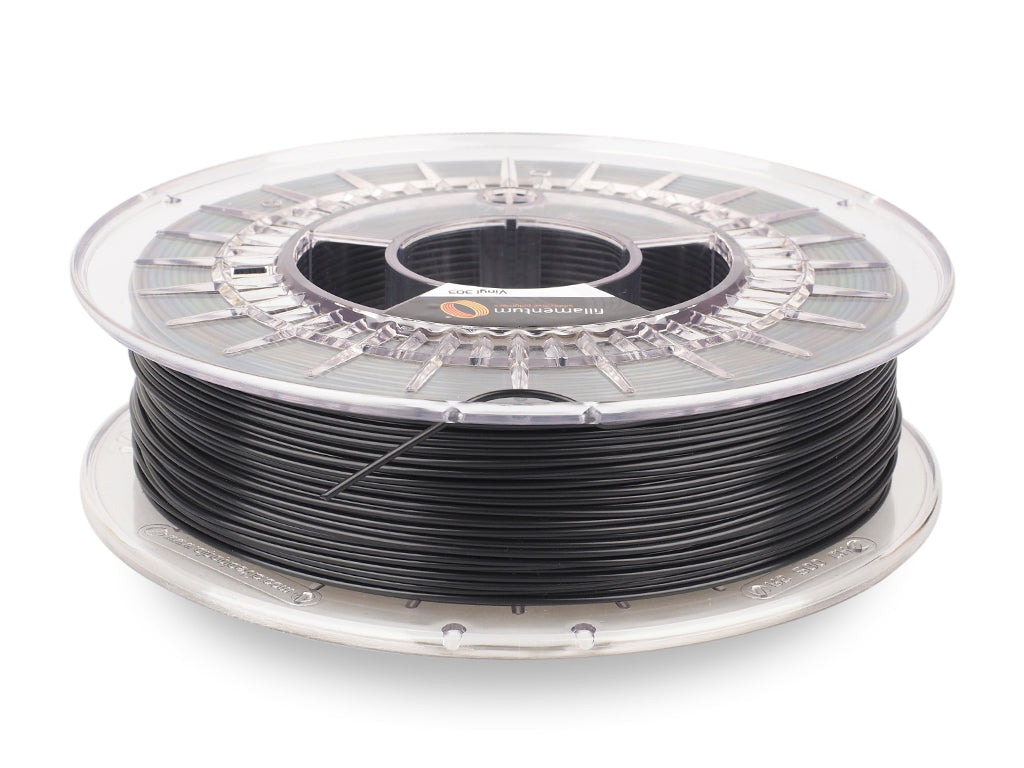

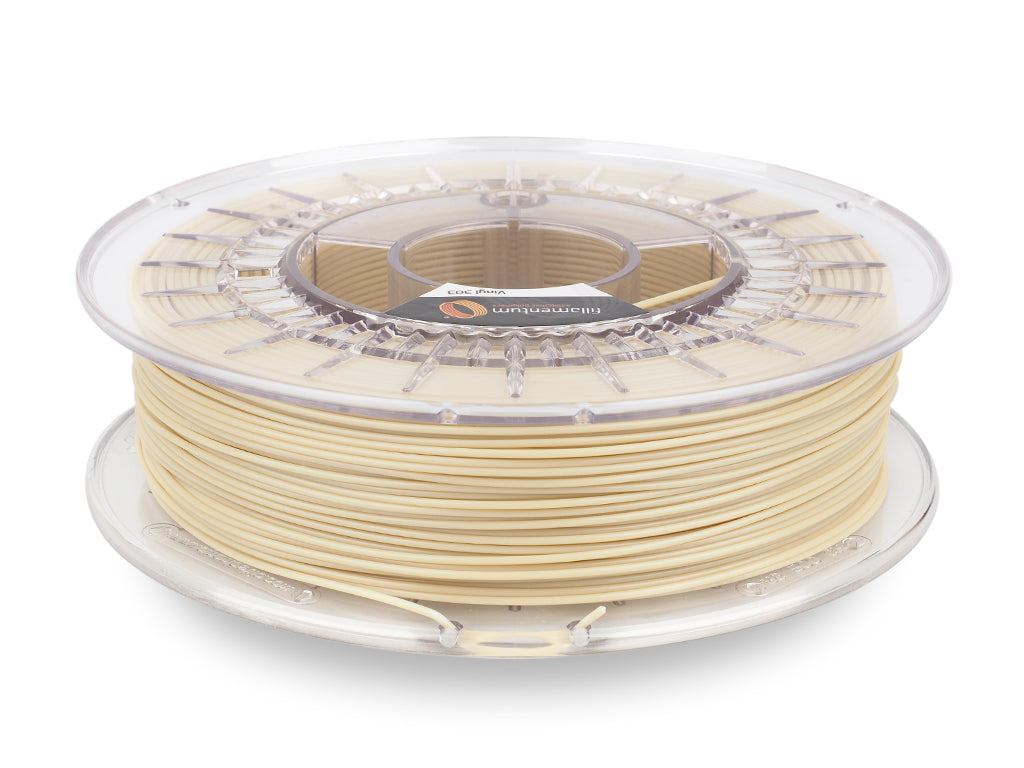

Vinyl 303 is a high-tech filament made of polyvinyl chloride PVC, widely used commodity plastic.

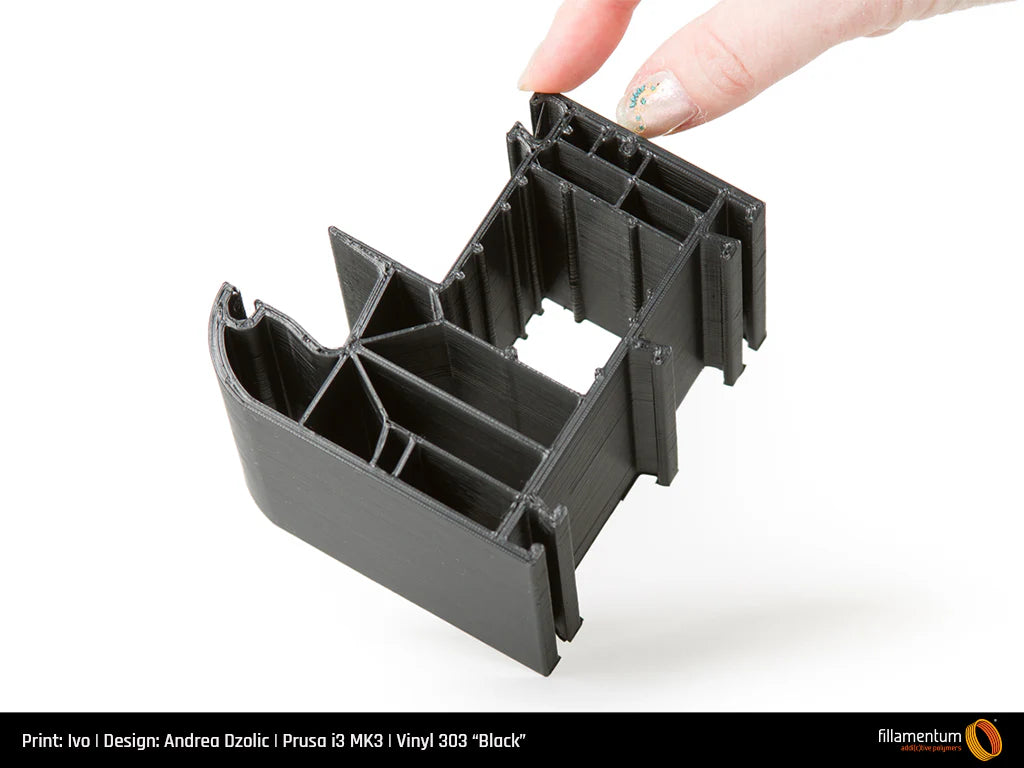

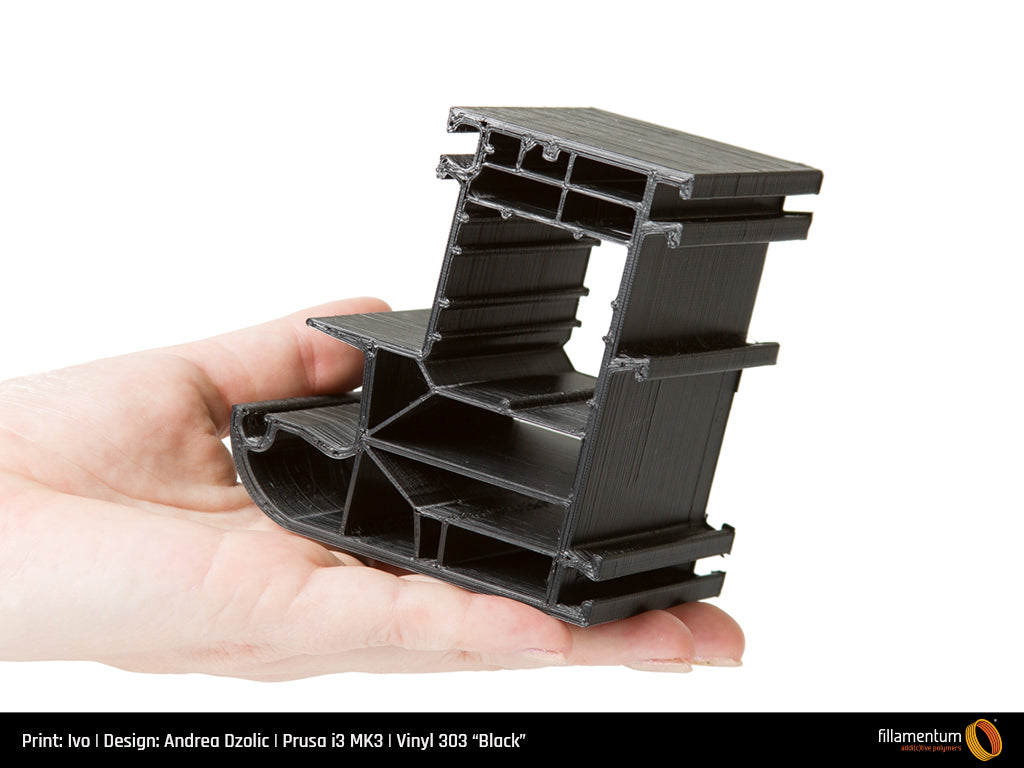

Thanks to its great properties, this is a perfect choice for functional prototyping, spare parts, or printing of objects for everyday use.
Features:
Printing Temperature: 215 – 230 °C
Bed Temperature: 80 - 90 °C
Printing Speed: 40 – 60 mm/s
Cooling Fan: 0 - 50 %
| PP2320 | PC/ABS | Nylon FX256 | Vinyl 303 | Fluorodur | |
|---|---|---|---|---|---|
| Polymer base | polypropylene | blend of polycarbonate and acrylonitrile butadiene styrene | polyamide 12 | polyvinyl chloride | polyvinylidene fluoride |
| Ease of 3D printing | ** | * | *** | **** | * |
| Low * / High **** warping | *** | *** | ** | * | **** |
| Mechanical behavior | tough, resilient in thin layer | stiff | tough, resilient in thin layer | stiff, strong | stiff, strong |
| Flexural resistance | bendable | rigid | bendable | rigid | rigid |
| Tensile strength | * | *** | ** | *** | *** |
| Impact resistance | 184 kJ/cm² (unnotched) | 53 kJ/cm² (notched) | 7 kJ/cm² (notched) | ˜5 kJ/cm² (notched) | 5 kJ/cm² (notched) |
| Hardness | * | *** | * | *** | ** |
| Creep resistance | ** | *** | *** | *** | **** |
| Density | 0,96 g/cm³ | 1,07 g/cm³ | 1,01 g/cm³ | 1,35 g/cm³ | 1,79 g/cm³ |
| Chemical resistance* good resistance to | acids, alkalis, alcohols, acetone, water | water, oils and greases, alcohols, ozone, salts | wide range of chemicals, such as car fluids, alkalis, oils and greases, ozone, acetone alcohols | alkalis, alcohols, oils and greases, water, even strong chemicals | car fluids, acids, oils, alcohols, toluene, benzene, chlorinated hydrocarbons, water, ozone |
| Chemical resistance* low resistance to | halogenated hydrocarbons, benzene, car fluids, ozone, toluene, oils | acetone, car fluids, acids, alkalis, benzene | acids, long-term contact with hot water | acetone, car fluids, certain types of acids and alkalis | acetone, ethyl acetone, methyl ethyl ketone |
| Thermal resistance | up to 115 °C | up to 125 °C | up to 140 °C | up to 70 °C | up to 150 °C |
| Low temperature resistance | down to -40 °C | down to -40 °C | down to -60 °C | down to -40 °C | down to -40 °C |
| Moisture sensitivity | low | medium | high | low | low |
| Weather resistance | *** | ** | ** | * | **** |
| Combustibility | not classified | HB | HB | V-0 (self-extinguishing) | V-0 (self-extinguishing) |
| Barrier properties | **** | ** | *** | *** | **** |
| Optical properties | white, translucent | yellowish, non-translucent | clear, transparent | brownish or black, non-translucent | white, translucent |
| Hydrolytic stability | **** | ** | ** | **** | **** |
Vinyl 303 is a high-tech filament made of polyvinyl chloride PVC, widely used commodity plastic.
Thanks to its great properties, this is a perfect choice for functional prototyping, spare parts, or printing of objects for everyday use.
Features:
Printing Temperature: 215 – 230 °C
Bed Temperature: 80 - 90 °C
Printing Speed: 40 – 60 mm/s
Cooling Fan: 0 - 50 %
| PP2320 | PC/ABS | Nylon FX256 | Vinyl 303 | Fluorodur | |
|---|---|---|---|---|---|
| Polymer base | polypropylene | blend of polycarbonate and acrylonitrile butadiene styrene | polyamide 12 | polyvinyl chloride | polyvinylidene fluoride |
| Ease of 3D printing | ** | * | *** | **** | * |
| Low * / High **** warping | *** | *** | ** | * | **** |
| Mechanical behavior | tough, resilient in thin layer | stiff | tough, resilient in thin layer | stiff, strong | stiff, strong |
| Flexural resistance | bendable | rigid | bendable | rigid | rigid |
| Tensile strength | * | *** | ** | *** | *** |
| Impact resistance | 184 kJ/cm² (unnotched) | 53 kJ/cm² (notched) | 7 kJ/cm² (notched) | ˜5 kJ/cm² (notched) | 5 kJ/cm² (notched) |
| Hardness | * | *** | * | *** | ** |
| Creep resistance | ** | *** | *** | *** | **** |
| Density | 0,96 g/cm³ | 1,07 g/cm³ | 1,01 g/cm³ | 1,35 g/cm³ | 1,79 g/cm³ |
| Chemical resistance* good resistance to | acids, alkalis, alcohols, acetone, water | water, oils and greases, alcohols, ozone, salts | wide range of chemicals, such as car fluids, alkalis, oils and greases, ozone, acetone alcohols | alkalis, alcohols, oils and greases, water, even strong chemicals | car fluids, acids, oils, alcohols, toluene, benzene, chlorinated hydrocarbons, water, ozone |
| Chemical resistance* low resistance to | halogenated hydrocarbons, benzene, car fluids, ozone, toluene, oils | acetone, car fluids, acids, alkalis, benzene | acids, long-term contact with hot water | acetone, car fluids, certain types of acids and alkalis | acetone, ethyl acetone, methyl ethyl ketone |
| Thermal resistance | up to 115 °C | up to 125 °C | up to 140 °C | up to 70 °C | up to 150 °C |
| Low temperature resistance | down to -40 °C | down to -40 °C | down to -60 °C | down to -40 °C | down to -40 °C |
| Moisture sensitivity | low | medium | high | low | low |
| Weather resistance | *** | ** | ** | * | **** |
| Combustibility | not classified | HB | HB | V-0 (self-extinguishing) | V-0 (self-extinguishing) |
| Barrier properties | **** | ** | *** | *** | **** |
| Optical properties | white, translucent | yellowish, non-translucent | clear, transparent | brownish or black, non-translucent | white, translucent |
| Hydrolytic stability | **** | ** | ** | **** | **** |
!
